Filter dust collector StaubStop 3000

mobilefor grinding dustfor wood dust

Overview

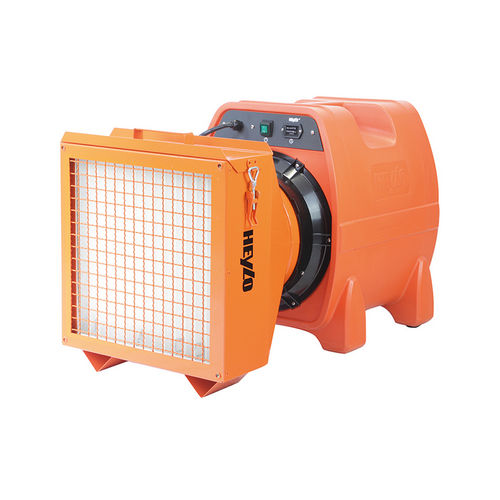

Mobile dust extraction unit for workshop and construction-site use. The StaubStop system combines a PowerVent 3000 or PowerVent 6000 fan, a filter housing and a dust filter set (prefilter G4 + main filter F9). Designed for direct dust removal at the source, it is quick to set up and lightweight for easy transport.

System contents

• PowerVent fan (PowerVent 3000 or PowerVent 6000)
• Filter housing
• Dust filter set (prefilter G4 + main filter F9)

Features and benefits

• Direct suction of dust, debris and optionally paint mist at the point of origin
• High air flow for effective extraction
• Quick filter change and replaceable filter elements
• Compact and lightweight design for fast deployment and transport
• Possible connection for an air hose to enable targeted extraction

Typical applications

• Construction and renovation sites
• Workshops (sanding, grinding and dust-generating tasks)
• Painting operations (with optional paint/overspray filter)
• Commercial buildings and large indoor areas
• Industrial production requiring localized dust extraction
• Rental companies and event sites

Usage notes
The combination of fan and filter housing removes dust directly at its origin. Filter elements can be replaced or adapted (prefilter G4, main filter F9 or optional paint/overspray filter) to suit the application. The unit is optimized for fast assembly and easy transport.

Technical specifications

• Models: StaubStop 3000 and StaubStop 6000
• Air flow (max): StaubStop 3000 — 3102 m³/h; StaubStop 6000 — 5410 m³/h
• Electrical supply: 230 V / 1ph / 50 Hz
• Included filters: Dust filter set (prefilter G4 + main filter F9)
• Sound level @ 3 m: 78 dB(A) (3000) / 84 dB(A) (6000)
• Filter housing size (L x W x H): 450 x 430 x 450 mm (3000) / 445 x 640 x 690 mm (6000)
• Net weight: 29 kg (3000) / 45 kg (6000)
