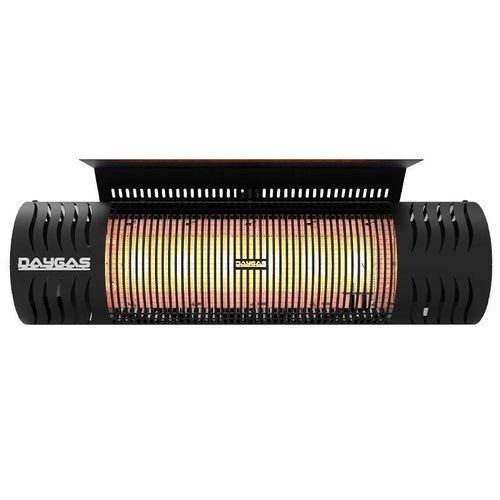

Radiant heater DSR 12 Premium Edition

Daygas brings together efficient, economical, quality and functional products that give importance to innovation and R&D studies, thus saving energy in the heating sector, with final consumers. - Power 12 kW - Short start-up and thermal effect. - Possibility to operate in 2 stages and 5 stages with remote control. - Thanks to the separator cap on it, the heated air is thrown forward and creates the possibility of mounting closer to the ceiling. - Step display and manual control possibility on the display screen. - Special color options resistant to temperatures up to 1300°C. - Regional temperature control facility. - Energy saving. - High level of security. Safe gas valve system. - Low energy consumption. - Simple service and assembly. - Freeze protection. Capacity: 12kW Gas Consumption: NG 1.14m³/h / LPG 0.84kg/h Dimensions: 270h / 960L / 225w Weight: Net 15.50kg / Gross 17.15kg Working Pressure: 21-55mbar NG / 32-55mbar LPG Heating Area: min 18m² / avg 25m² / max 40m² Stage: Standard 2 / Plus 5 Ceramic Plate: Pcs 6 Electrical Connection: 230-240VAC 50-60Hz +/-15% Gas Connection: G ¾ Installation Height: 190 – 350cm Device Controls: - Remote control, integration via control board, Pako switched manual control, thermostat-switched automatic control, integration into automation system (Scada). Automation System: - Modbus communication protocol via RS485 port, HMI touch panel or PC control if no BMS system. BMS System Features: - Operation scheduling, regional/individual step and modulation control, fault code monitoring, fuel consumption monitoring. Control Panel Features: - Password protection, heat preservation mode, freeze protection, 24/7 programmable, 128x64 graphic LCD, computer communication port, automatic/manual control, external temperature sensor, control up to 8 zones and 32 devices. Analog Room Thermostat: - Automatically turns off/on device based on set temperature, saves fuel. Temperature Sensor: - Freeze protection, modulating control, temperature adjustment, automatic shutdown/startup based on programmed temperature. Pako Switched Manual Control: - Step-adjusted manual control, independent step setting, long service life. Remote Control: - 3-button device, controls all functions (on/off, heat setting, reset), one remote for all Daygas products.
