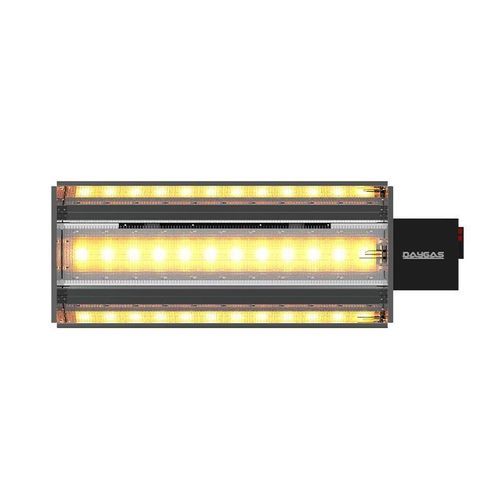

Radiant heater DSR 30

Daygas offers efficient, economical, quality, and functional products that emphasize innovation and R&D, saving energy in the heating sector for end consumers. - Power: 30 kW - Short start-up and thermal effect. - Operation in 2 steps and 5 steps with remote control. - Heated air is projected forward, allowing installation closer to the ceiling. - Step display and manual control option on the display screen. - Special color options resistant to temperatures up to 1300°C. - Regional temperature control installation. - Energy saving. - High level of safety with a safe gas valve system. - Low energy consumption. - Simple service and assembly. - Frost protection. Technical Specifications: - Capacity: 30kW - Gas Consumption: NG 2.85m³/h / LPG 2.11 kg/h - Dimensions: 515h / 1440L / 410w - Weight: Net 31.80kg / Gross 36.60kg - Working Pressure: 21-55mbar NG / 32-55mbar LPG - Heating Area: min 40m² / avg 50m² / max 70m² - Step: Standard 2 / Plus 5 - Ceramic Plate: 12 pcs - Electrical Connection: 230-240VAC 50-60Hz +/-15% - Gas Connection: G ¾’’ - Installation Height: 250-500cm - Package Dimensions: 550h / 1470L / 450w DSR Ceramic Radiants: - Special design with high heat capacity Daygas ceramic stone, efficient and economical power in local heating solutions. - Sun technology. - All metal components are resistant to high temperatures and durable. - All electrical components are made of non-flammable silicone cables with high heat resistance. Control Device: - Remote control. - Pako switched manual control. - Integration via control card. - Automatic thermostat control. - Integration into automation system (SCADA control). Automation System Integration (SCADA Control): Our devices can be directly integrated into building automation systems (BMS) via the Modbus communication protocol through the RS485 (internal) port, or if no BMS is available, device control can be used fully automatically from a single center via an HMI touchscreen or PC. - Device operation scheduling by days and hours, - Viewing system device error codes and identifying which device has the problem and storing it in memory, - Step and regional or individual modulation control of heating devices, - Functional controls such as instant, daily, weekly, or monthly fuel consumption monitoring are advantages of the integrated automation system. Control Panel: - Password protection. - 24/7 programmable function. - 128 x 64 graphic LCD screen. - Heat retention mode. - Frost protection device. - Computer communication port. - Automatic and manual control options. - Possibility to connect an external temperature sensor. - Ability to control 8 independent zones and 32 devices in total. Analog Thermostat: The Daygas analog thermostat automatically turns off the device when the set temperature is reached, then when the ambient temperature drops below the desired value, the device automatically switches on at the maximum level and starts working again. In this way, it saves fuel. Temperature Sensor: - Frost protection mode. - Possibility of modulating control. - Temperature adjustment via the device. Pako Switched Manual Control: With the pako switched control, step-adjustable manual control can be provided on the pako. For more local solutions where there is no control panel or it is not necessary, devices can be operated at the desired level via the pako switch. The heating elements can be controlled with independent step adjustment. Since the device is not powered in standby – in (0) position on the Pako, the device to be turned off goes to sleep after shutdown procedures, thus ensuring the longevity of the devices. Remote Control: Daygas remote controls are easy-to-use control devices with 3 buttons and simple functions. Thanks to the Daygas remote control, all device functions such as on-off, heat adjustment, and reset can be easily controlled. All Daygas products can be controlled remotely with a single remote.
