Linear piezoelectric actuator

ultrasonic101 V...300 Vfor OEM

Product overview

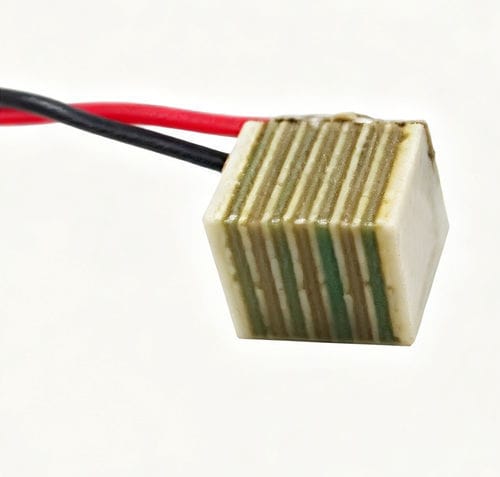

7µm shear piezo stack actuator 5×5×6 mm belongs to the Multilayer Piezo Elements category from Hurricane PZT and is intended for technical evaluation, sample validation and OEM/ODM product development. For reliable selection, review the required resonant frequency, element geometry, electrode configuration, poling direction, drive conditions, available mounting space and operating environment.

Key Technical Information

• Resonant frequency: 2100 kHz
• Dimensions: 5×5×6 mm
• Maximum displacement: 7 µm
• Capacitance: X: 10 nF ±15%
• Drive voltage: ±200 V

Typical Applications

• Precision motion and positioning

Customization and Supply Support
Support available for dimensional adjustments, PZT material selection, electrode layout, poling direction, lead connection, prototype/sample development and batch production planning.

Technical specifications

• Category: Multilayer Piezo Elements
• Resonant frequency: 2100 kHz
• Dimensions: 5×5×6 mm
• Maximum displacement: 7 µm
• Capacitance: X: 10 nF ±15%
• Drive voltage: ±200 V
• Intended uses: technical evaluation, sample validation, OEM/ODM product development
• Customization options: dimension, PZT material, electrodes, poling direction, lead connection, sample and batch production support
