Linear piezoelectric actuator BBPXST-PH

101 V...300 Vmultilayer

Product overview

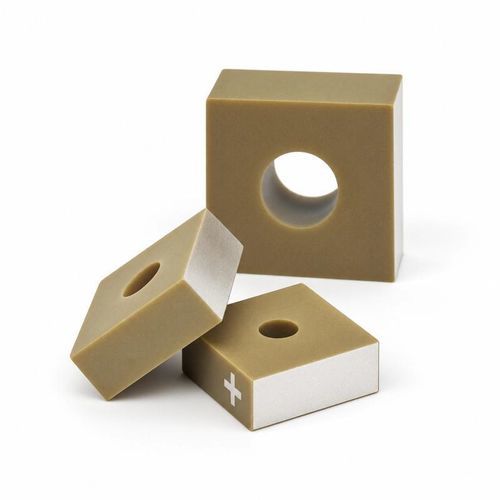

BBPXST-PH is a multilayer piezoelectric actuator using alternating ceramic layers and internal electrodes to generate axial micromovements when a drive voltage is applied. It features a square body with a central bore for mechanical integration.

Construction and options

• Side termination electrodes connect the internal electrodes; remaining sides are ceramic-insulated.
• A cross mark on the side identifies the positive polarity.
• Dimensions and drive voltage can be customized to application requirements.

Available specifications
150 V | 5.0 × 5.0 × 2.0 mm; Ø2 mm bore | 160 nF | 610 kHz | 1.8 µm | 800 N
150 V | 5.0 × 5.0 × 3.0 mm; Ø2 mm bore | 180 nF | 580 kHz | 3.0 µm | 800 N
150 V | 7.0 × 7.0 × 2.0 mm; Ø2 mm bore | 320 nF | 530 kHz | 2.0 µm | 1600 N
150 V | 7.0 × 7.0 × 3.0 mm; Ø3 mm bore | 440 nF | 430 kHz | 3.0 µm | 1600 N

Use and selection

• Each line corresponds to a specific configuration. Choose drive voltage, nominal displacement, operating frequency and required force together.
• Actual displacement depends on drive voltage, mechanical load and mounting conditions. Avoid impact, bending and concentrated stresses during assembly.
• For vacuum or special environments, confirm suitability of leads, bonding and encapsulation materials.

Technical specifications

• Model: BBPXST-PH
• Construction: Multilayer ceramic with alternating layers and internal electrodes; side termination electrodes; ceramic insulation on remaining sides
• Polarity: Cross mark on side identifies positive polarity
• Customization: Dimensions and drive voltage can be customized
• Configurations (Drive voltage / Dimensions; bore / Capacitance / Frequency / Nominal displacement / Maximum generated force):
• 150 V / 5.0 × 5.0 × 2.0 mm; Ø2 mm / 160 nF / 610 kHz / 1.8 µm / 800 N
• 150 V / 5.0 × 5.0 × 3.0 mm; Ø2 mm / 180 nF / 580 kHz / 3.0 µm / 800 N
• 150 V / 7.0 × 7.0 × 2.0 mm; Ø2 mm / 320 nF / 530 kHz / 2.0 µm / 1600 N
• 150 V / 7.0 × 7.0 × 3.0 mm; Ø3 mm / 440 nF / 430 kHz / 3.0 µm / 1600 N
