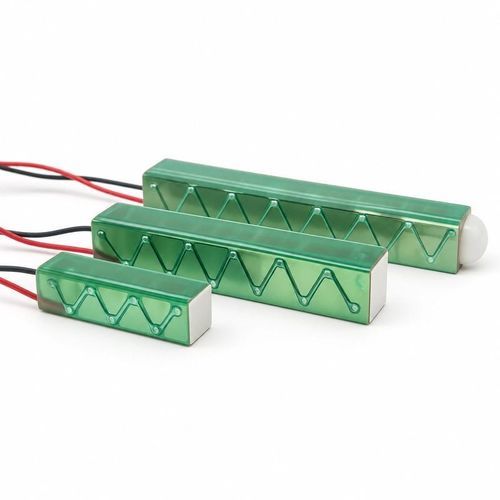

Linear piezoelectric actuator BBPXMS-PL100 V101 V...300 Vfor industrial applications
Add to favorites
Compare this product
Characteristics
- Movement
- linear
- Voltage
- 100 V, 101 V...300 V
- Other characteristics
- for industrial applications, ceramic, multilayer
- Stroke
Min.: 0.005 mm
(0 in)Max.: 0.1 mm
(0.004 in)- Force
Min.: 0.16 kN
Max.: 4 kN
Description
Product overview
BBPXMS-PL uses multilayer ceramic chips stacked axially and bonded with epoxy to produce axial micromovement. Typical configurations provide a range of displacements, frequencies and output forces suitable for precision positioning and actuation in industrial applications.
Construction and options
Available specifications
Drive voltage: 75 V
Drive voltage | Dimensions — Length × width × height | Capacitance ±15% | Frequency | Nominal displacement ±15% | Maximum generated force
75 V | 3.0 × 3.0 × 18.8 mm | 2.25 µF | 65 kHz | 18.0 µm | 360 N
75 V | 3.0 × 3.0 × 31.0 mm | 3.75 µF | 40 kHz | 30.0 µm | 360 N
75 V | 5.0 × 5.0 × 10.5 mm | 4.2 µF | 115 kHz | 11.2 µm | 1000 N
75 V | 5.0 × 5.0 × 18.0 mm | 7.3 µF | 65 kHz | 19.6 µm | 1000 N
75 V | 5.0 × 5.0 × 23.0 mm | 9.4 µF | 55 kHz | 25.2 µm | 1000 N
75 V | 5.0 × 5.0 × 39.8 mm | 16.5 µF | 30 kHz | 44.8 µm | 1000 N
75 V | 3.0 × 3.0 × 32.2 mm | 3.75 µF | 40 kHz | 30.0 µm | 360 N
75 V | 5.0 × 5.0 × 12.6 mm | 4.2 µF | 115 kHz | 11.2 µm | 1000 N
75 V | 5.0 × 5.0 × 20.1 mm | 7.3 µF | 65 kHz | 19.6 µm | 1000 N
75 V | 5.0 × 5.0 × 25.1 mm | 9.4 µF | 55 kHz | 25.2 µm | 1000 N
75 V | 5.0 × 5.0 × 41.9 mm | 16.5 µF | 30 kHz | 44.8 µm | 1000 N
Drive voltage: 100 V
Drive voltage | Dimensions — Length × width × height | Capacitance ±15% | Frequency | Nominal displacement ±15% | Maximum generated force
100 V | 2.0 × 2.0 × 10.9 mm | 240 nF | 115 kHz | 9.5 µm | 160 N
100 V | 3.0 × 3.0 × 10.9 mm | 620 nF | 115 kHz | 10.5 µm | 360 N
100 V | 3.0 × 3.0 × 20.9 mm | 1.25 µF | 60 kHz | 21.0 µm | 360 N
100 V | 3.0 × 3.0 × 31.0 mm | 1.85 µF | 40 kHz | 31.5 µm | 360 N
100 V | 2.0 × 2.0 × 11.5 mm | 240 nF | 115 kHz | 9.5 µm | 160 N
100 V | 3.0 × 3.0 × 12.0 mm | 620 nF | 115 kHz | 10.5 µm | 360 N
100 V | 3.0 × 3.0 × 22.1 mm | 1250 nF | 60 kHz | 21.0 µm | 360 N
100 V | 3.0 × 3.0 × 32.2 mm | 1850 nF | 40 kHz | 31.5 µm | 360 N
Drive voltage: 120 V
Drive voltage | Dimensions — Length × width × height | Capacitance ±15% | Frequency | Nominal displacement ±15% | Maximum generated force
120 V | 7.0 × 7.0 × 36.0 mm | 7.2 µF | 35 kHz | 38.0 µm | 1960 N
Drive voltage: 150 V
Drive voltage | Dimensions — Length × width × height | Capacitance ±15% | Frequency | Nominal displacement ±15% | Maximum generated force
150 V | 2.0 × 2.0 × 10.9 mm | 110 nF | 115 kHz | 9.5 µm | 160 N
150 V | 2.5 × 2.5 × 5.0 mm | 100 nF | 250 kHz | 5.2 µm | 250 N
150 V | 2.5 × 2.5 × 10.0 mm | 175 nF | 130 kHz | 9.2 µm | 250 N
150 V | 2.5 × 2.5 × 19.4 mm | 360 nF | 68 kHz | 19.0 µm | 250 N
150 V | 3.0 × 3.0 × 5.0 mm | 130 nF | 265 kHz | 4.8 µm | 360 N
150 V | 3.0 × 3.0 × 7.0 mm | 180 nF | 192 kHz | 6.8 µm | 360 N
150 V | 3.0 × 3.0 × 9.0 mm | 250 nF | 140 kHz | 9.5 µm | 360 N
150 V | 3.0 × 3.0 × 10.0 mm | 275 nF | 132 kHz | 11.0 µm | 360 N
150 V | 3.0 × 3.0 × 18.8 mm | 530 nF | 65 kHz | 19.8 µm | 360 N
150 V | 3.0 × 3.0 × 31.0 mm | 930 nF | 40 kHz | 33.0 µm | 360 N
150 V | 5.0 × 5.0 × 9.0 mm | 650 nF | 140 kHz | 9.5 µm | 1000 N
150 V | 5.0 × 5.0 × 10.0 mm | 800 nF | 126 kHz | 10.0 µm | 1000 N
150 V | 5.0 × 5.0 × 12.0 mm | 850 nF | 105 kHz | 12.0 µm | 1000 N
150 V | 5.0 × 5.0 × 18.0 mm | 1.5 µF | 70 kHz | 20.0 µm | 1000 N
150 V | 5.0 × 5.0 × 20.0 mm | 1.6 µF | 65 kHz | 21.0 µm | 1000 N
150 V | 5.0 × 5.0 × 36.0 mm | 3.0 µF | 34 kHz | 40.0 µm | 1000 N
150 V | 5.0 × 5.0 × 38.0 mm | 3.3 µF | 34 kHz | 40.0 µm | 1000 N
150 V | 5.0 × 5.0 × 40.0 mm | 3.2 µF | 32 kHz | 43.0 µm | 1000 N
150 V | 5.0 × 5.0 × 48.0 mm | 4.2 µF | 26 kHz | 50.0 µm | 1000 N
150 V | 5.0 × 5.0 × 50.0 mm | 4.1 µF | 25 kHz | 55.0 µm | 1000 N
150 V | 7.0 × 7.0 × 9.0 mm | 1.4 µF | 130 kHz | 8.5 µm | 1960 N
150 V | 7.0 × 7.0 × 18.0 mm | 2.9 µF | 70 kHz | 19.0 µm | 1960 N
150 V | 7.0 × 7.0 × 20.0 mm | 3.2 µF | 62 kHz | 21.0 µm | 1960 N
150 V | 7.0 × 7.0 × 30.0 mm | 4.6 µF | 42 kHz | 32.0 µm | 1960 N
150 V | 7.0 × 7.0 × 36.0 mm | 6.0 µF | 35 kHz | 38.0 µm | 1960 N
150 V | 7.0 × 7.0 × 45.0 mm | 7.2 µF | 27 kHz | 50.0 µm | 1960 N
150 V | 7.0 × 7.0 × 50.0 mm | 8.5 µF | 24 kHz | 55.0 µm | 1960 N
150 V | 7.0 × 7.0 × 90.0 mm | 15.5 µF | 14 kHz | 100.0 µm | 1960 N
150 V | 10.0 × 10.0 × 18.0 mm | 6.0 µF | 65 kHz | 20.0 µm | 4000 N
150 V | 10.0 × 10.0 × 36.0 mm | 13.0 µF | 34 kHz | 40.0 µm | 4000 N
150 V | 10.0 × 10.0 × 45.0 mm | 15.0 µF | 15 kHz | 50.0 µm | 4000 N
150 V | 2.0 × 2.0 × 11.5 mm | 110 nF | 115 kHz | 9.5 µm | 160 N
150 V | 2.5 × 2.5 × 6.1 mm | 100 nF | 250 kHz | 5.2 µm | 250 N
150 V | 2.5 × 2.5 × 11.0 mm | 175 nF | 125 kHz | 9.2 µm | 250 N
150 V | 3.0 × 3.0 × 10.0 mm | 360 nF | 140 kHz | 8.8 µm | 360 N
150 V | 3.0 × 3.0 × 20.0 mm | 550 nF | 65 kHz | 19.8 µm | 360 N
150 V | 3.0 × 3.0 × 32.2 mm | 930 nF | 40 kHz | 33.0 µm | 360 N
150 V | 5.0 × 5.0 × 11.0 mm | 750 nF | 140 kHz | 9.5 µm | 1000 N
150 V | 5.0 × 5.0 × 20.1 mm | 1.5 µF | 70 kHz | 20.0 µm | 1000 N
150 V | 5.0 × 5.0 × 38.1 mm | 3.2 µF | 34 kHz | 40.0 µm | 1000 N
150 V | 5.0 × 5.0 × 52.2 mm | 4.5 µF | 25 kHz | 55.0 µm | 1000 N
150 V | 7.0 × 7.0 × 12.0 mm | 1.4 µF | 130 kHz | 8.5 µm | 1960 N
150 V | 7.0 × 7.0 × 21.1 mm | 3.0 µF | 70 kHz | 19.0 µm | 1960 N
150 V | 7.0 × 7.0 × 39.1 mm | 6.0 µF | 35 kHz | 38.0 µm | 1960 N
150 V | 7.0 × 7.0 × 48.1 mm | 9.0 µF | 27 kHz | 50.0 µm | 1960 N
150 V | 7.0 × 7.0 × 93.5 mm | 16.0 µF | 14 kHz | 100.0 µm | 1960 N
150 V | 10.0 × 10.0 × 22.6 mm | 6.0 µF | 65 kHz | 20.0 µm | 4000 N
150 V | 10.0 × 10.0 × 40.7 mm | 13.0 µF | 34 kHz | 40.0 µm | 4000 N
150 V | 10.0 × 10.0 × 49.7 mm | 15.0 µF | 27 kHz | 50.0 µm | 4000 N
Use and selection
Technical specifications
BBPXMS-PL uses multilayer ceramic chips stacked axially and bonded with epoxy to produce axial micromovement. Typical configurations provide a range of displacements, frequencies and output forces suitable for precision positioning and actuation in industrial applications.
Construction and options
- Ceramic side insulation and Kapton® tape wrapping; standard leads are approximately 75 mm long.
- Ceramic end caps are available in flat or hemispherical forms.
- Dimensions, drive voltage and surface coating can be customized.
Available specifications
Drive voltage: 75 V
Drive voltage | Dimensions — Length × width × height | Capacitance ±15% | Frequency | Nominal displacement ±15% | Maximum generated force
75 V | 3.0 × 3.0 × 18.8 mm | 2.25 µF | 65 kHz | 18.0 µm | 360 N
75 V | 3.0 × 3.0 × 31.0 mm | 3.75 µF | 40 kHz | 30.0 µm | 360 N
75 V | 5.0 × 5.0 × 10.5 mm | 4.2 µF | 115 kHz | 11.2 µm | 1000 N
75 V | 5.0 × 5.0 × 18.0 mm | 7.3 µF | 65 kHz | 19.6 µm | 1000 N
75 V | 5.0 × 5.0 × 23.0 mm | 9.4 µF | 55 kHz | 25.2 µm | 1000 N
75 V | 5.0 × 5.0 × 39.8 mm | 16.5 µF | 30 kHz | 44.8 µm | 1000 N
75 V | 3.0 × 3.0 × 32.2 mm | 3.75 µF | 40 kHz | 30.0 µm | 360 N
75 V | 5.0 × 5.0 × 12.6 mm | 4.2 µF | 115 kHz | 11.2 µm | 1000 N
75 V | 5.0 × 5.0 × 20.1 mm | 7.3 µF | 65 kHz | 19.6 µm | 1000 N
75 V | 5.0 × 5.0 × 25.1 mm | 9.4 µF | 55 kHz | 25.2 µm | 1000 N
75 V | 5.0 × 5.0 × 41.9 mm | 16.5 µF | 30 kHz | 44.8 µm | 1000 N
Drive voltage: 100 V
Drive voltage | Dimensions — Length × width × height | Capacitance ±15% | Frequency | Nominal displacement ±15% | Maximum generated force
100 V | 2.0 × 2.0 × 10.9 mm | 240 nF | 115 kHz | 9.5 µm | 160 N
100 V | 3.0 × 3.0 × 10.9 mm | 620 nF | 115 kHz | 10.5 µm | 360 N
100 V | 3.0 × 3.0 × 20.9 mm | 1.25 µF | 60 kHz | 21.0 µm | 360 N
100 V | 3.0 × 3.0 × 31.0 mm | 1.85 µF | 40 kHz | 31.5 µm | 360 N
100 V | 2.0 × 2.0 × 11.5 mm | 240 nF | 115 kHz | 9.5 µm | 160 N
100 V | 3.0 × 3.0 × 12.0 mm | 620 nF | 115 kHz | 10.5 µm | 360 N
100 V | 3.0 × 3.0 × 22.1 mm | 1250 nF | 60 kHz | 21.0 µm | 360 N
100 V | 3.0 × 3.0 × 32.2 mm | 1850 nF | 40 kHz | 31.5 µm | 360 N
Drive voltage: 120 V
Drive voltage | Dimensions — Length × width × height | Capacitance ±15% | Frequency | Nominal displacement ±15% | Maximum generated force
120 V | 7.0 × 7.0 × 36.0 mm | 7.2 µF | 35 kHz | 38.0 µm | 1960 N
Drive voltage: 150 V
Drive voltage | Dimensions — Length × width × height | Capacitance ±15% | Frequency | Nominal displacement ±15% | Maximum generated force
150 V | 2.0 × 2.0 × 10.9 mm | 110 nF | 115 kHz | 9.5 µm | 160 N
150 V | 2.5 × 2.5 × 5.0 mm | 100 nF | 250 kHz | 5.2 µm | 250 N
150 V | 2.5 × 2.5 × 10.0 mm | 175 nF | 130 kHz | 9.2 µm | 250 N
150 V | 2.5 × 2.5 × 19.4 mm | 360 nF | 68 kHz | 19.0 µm | 250 N
150 V | 3.0 × 3.0 × 5.0 mm | 130 nF | 265 kHz | 4.8 µm | 360 N
150 V | 3.0 × 3.0 × 7.0 mm | 180 nF | 192 kHz | 6.8 µm | 360 N
150 V | 3.0 × 3.0 × 9.0 mm | 250 nF | 140 kHz | 9.5 µm | 360 N
150 V | 3.0 × 3.0 × 10.0 mm | 275 nF | 132 kHz | 11.0 µm | 360 N
150 V | 3.0 × 3.0 × 18.8 mm | 530 nF | 65 kHz | 19.8 µm | 360 N
150 V | 3.0 × 3.0 × 31.0 mm | 930 nF | 40 kHz | 33.0 µm | 360 N
150 V | 5.0 × 5.0 × 9.0 mm | 650 nF | 140 kHz | 9.5 µm | 1000 N
150 V | 5.0 × 5.0 × 10.0 mm | 800 nF | 126 kHz | 10.0 µm | 1000 N
150 V | 5.0 × 5.0 × 12.0 mm | 850 nF | 105 kHz | 12.0 µm | 1000 N
150 V | 5.0 × 5.0 × 18.0 mm | 1.5 µF | 70 kHz | 20.0 µm | 1000 N
150 V | 5.0 × 5.0 × 20.0 mm | 1.6 µF | 65 kHz | 21.0 µm | 1000 N
150 V | 5.0 × 5.0 × 36.0 mm | 3.0 µF | 34 kHz | 40.0 µm | 1000 N
150 V | 5.0 × 5.0 × 38.0 mm | 3.3 µF | 34 kHz | 40.0 µm | 1000 N
150 V | 5.0 × 5.0 × 40.0 mm | 3.2 µF | 32 kHz | 43.0 µm | 1000 N
150 V | 5.0 × 5.0 × 48.0 mm | 4.2 µF | 26 kHz | 50.0 µm | 1000 N
150 V | 5.0 × 5.0 × 50.0 mm | 4.1 µF | 25 kHz | 55.0 µm | 1000 N
150 V | 7.0 × 7.0 × 9.0 mm | 1.4 µF | 130 kHz | 8.5 µm | 1960 N
150 V | 7.0 × 7.0 × 18.0 mm | 2.9 µF | 70 kHz | 19.0 µm | 1960 N
150 V | 7.0 × 7.0 × 20.0 mm | 3.2 µF | 62 kHz | 21.0 µm | 1960 N
150 V | 7.0 × 7.0 × 30.0 mm | 4.6 µF | 42 kHz | 32.0 µm | 1960 N
150 V | 7.0 × 7.0 × 36.0 mm | 6.0 µF | 35 kHz | 38.0 µm | 1960 N
150 V | 7.0 × 7.0 × 45.0 mm | 7.2 µF | 27 kHz | 50.0 µm | 1960 N
150 V | 7.0 × 7.0 × 50.0 mm | 8.5 µF | 24 kHz | 55.0 µm | 1960 N
150 V | 7.0 × 7.0 × 90.0 mm | 15.5 µF | 14 kHz | 100.0 µm | 1960 N
150 V | 10.0 × 10.0 × 18.0 mm | 6.0 µF | 65 kHz | 20.0 µm | 4000 N
150 V | 10.0 × 10.0 × 36.0 mm | 13.0 µF | 34 kHz | 40.0 µm | 4000 N
150 V | 10.0 × 10.0 × 45.0 mm | 15.0 µF | 15 kHz | 50.0 µm | 4000 N
150 V | 2.0 × 2.0 × 11.5 mm | 110 nF | 115 kHz | 9.5 µm | 160 N
150 V | 2.5 × 2.5 × 6.1 mm | 100 nF | 250 kHz | 5.2 µm | 250 N
150 V | 2.5 × 2.5 × 11.0 mm | 175 nF | 125 kHz | 9.2 µm | 250 N
150 V | 3.0 × 3.0 × 10.0 mm | 360 nF | 140 kHz | 8.8 µm | 360 N
150 V | 3.0 × 3.0 × 20.0 mm | 550 nF | 65 kHz | 19.8 µm | 360 N
150 V | 3.0 × 3.0 × 32.2 mm | 930 nF | 40 kHz | 33.0 µm | 360 N
150 V | 5.0 × 5.0 × 11.0 mm | 750 nF | 140 kHz | 9.5 µm | 1000 N
150 V | 5.0 × 5.0 × 20.1 mm | 1.5 µF | 70 kHz | 20.0 µm | 1000 N
150 V | 5.0 × 5.0 × 38.1 mm | 3.2 µF | 34 kHz | 40.0 µm | 1000 N
150 V | 5.0 × 5.0 × 52.2 mm | 4.5 µF | 25 kHz | 55.0 µm | 1000 N
150 V | 7.0 × 7.0 × 12.0 mm | 1.4 µF | 130 kHz | 8.5 µm | 1960 N
150 V | 7.0 × 7.0 × 21.1 mm | 3.0 µF | 70 kHz | 19.0 µm | 1960 N
150 V | 7.0 × 7.0 × 39.1 mm | 6.0 µF | 35 kHz | 38.0 µm | 1960 N
150 V | 7.0 × 7.0 × 48.1 mm | 9.0 µF | 27 kHz | 50.0 µm | 1960 N
150 V | 7.0 × 7.0 × 93.5 mm | 16.0 µF | 14 kHz | 100.0 µm | 1960 N
150 V | 10.0 × 10.0 × 22.6 mm | 6.0 µF | 65 kHz | 20.0 µm | 4000 N
150 V | 10.0 × 10.0 × 40.7 mm | 13.0 µF | 34 kHz | 40.0 µm | 4000 N
150 V | 10.0 × 10.0 × 49.7 mm | 15.0 µF | 27 kHz | 50.0 µm | 4000 N
Use and selection
- Each row represents one configuration. Select voltage, displacement, frequency and force together.
- Actual displacement depends on drive voltage, load and mounting. Avoid impact, bending and concentrated stress during assembly.
- For vacuum or special environments, confirm the suitability of leads, bonding and encapsulation.
- Apply loads along the axis, avoiding eccentric loads and shear forces. Match the end cap to the contact arrangement.
Technical specifications
- Model: BBPXMS-PL (square multilayer piezoelectric stack actuator)
- Drive voltages available: 75 V, 100 V, 120 V, 150 V
- Example dimensions range: from 2.0 × 2.0 × ~5.0 mm up to 10.0 × 10.0 × 93.5 mm (various configurations listed)
- Capacitance range (examples): ~100 nF up to ~16 µF depending on configuration
- Frequency range (examples): ~14 kHz up to ~265 kHz depending on configuration
- Nominal displacement range (examples): ~4.8 µm up to 100.0 µm (±15%) depending on configuration
- Maximum generated force: configurations from 160 N up to 4000 N (depending on size/series)
- Construction: multilayer ceramic chips stacked axially, epoxy bonded
- Insulation/wrap: ceramic side insulation and Kapton® tape wrapping
- End cap options: flat or hemispherical
- Standard lead length: approx. 75 mm (customizable leads, coatings, dimensions available)
Catalogs
No catalogs are available for this product.
See all of Deep Minds Ultrasonic‘s catalogsOther Deep Minds Ultrasonic products
Multilayer Piezo Elements
*Prices are pre-tax. They exclude delivery charges and customs duties and do not include additional charges for installation or activation options. Prices are indicative only and may vary by country, with changes to the cost of raw materials and exchange rates.
