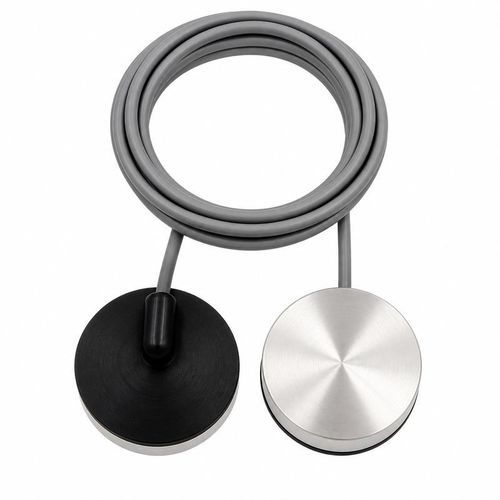

Immersible ultrasonic transducer BBMU-PHYF-B

high-frequency

Overview
The BBMU-PHYF-B series comprises therapeutic ultrasound transducers designed for medical devices including physical therapy, rehabilitation and medical-aesthetic equipment. Available center frequencies are 600 kHz, 1 MHz and 1.5 MHz. Units operate from -40 °C to +80 °C, are pressure-rated to 10 kgf (1 MPa) and feature IP68 ingress protection. Electrical and acoustic parameters vary by frequency and must be selected as a complete row corresponding to the chosen frequency.

Frequency-specific configurations
Center frequency | Minimum impedance | Capacitance | Peak voltage | Half-power angle at -3 dB | Housing material
600 kHz ±5% | 90 Ω ±20% | 1,600 pF ±20% at 1 kHz | Below 490 Vpp | 8.1° ±10% | Hard aluminum
1 MHz ±5% | 8 Ω ±20% | 3,500 pF ±20% at 1 kHz | Below 300 Vpp | 3.5° ±10% | Hard aluminum
1.5 MHz ±5% | 20 Ω ±20% | 3,000 pF ±20% at 1 kHz | Below 400 Vpp | 2° ±10% | LV12

Applications

• Physical therapy equipment
• Rehabilitation therapy
• Ultrasonic energy delivery
• Medical-aesthetic equipment

Technical specifications

• Series: BBMU-PHYF-B
• Center frequencies available: 600 kHz ±5%, 1 MHz ±5%, 1.5 MHz ±5%
• Operating temperature range: -40 °C to +80 °C
• Pressure rating: up to 10 kgf (1 MPa)
• Ingress protection: IP68
• Electrical and acoustic parameters must be selected as a complete row corresponding to chosen frequency
• 600 kHz: Minimum impedance 90 Ω ±20%, Capacitance 1,600 pF ±20% at 1 kHz, Peak voltage below 490 Vpp, Half-power angle 8.1° ±10%, Housing material: Hard aluminum
• 1 MHz: Minimum impedance 8 Ω ±20%, Capacitance 3,500 pF ±20% at 1 kHz, Peak voltage below 300 Vpp, Half-power angle 3.5° ±10%, Housing material: Hard aluminum
• 1.5 MHz: Minimum impedance 20 Ω ±20%, Capacitance 3,000 pF ±20% at 1 kHz, Peak voltage below 400 Vpp, Half-power angle 2° ±10%, Housing material: LV12
