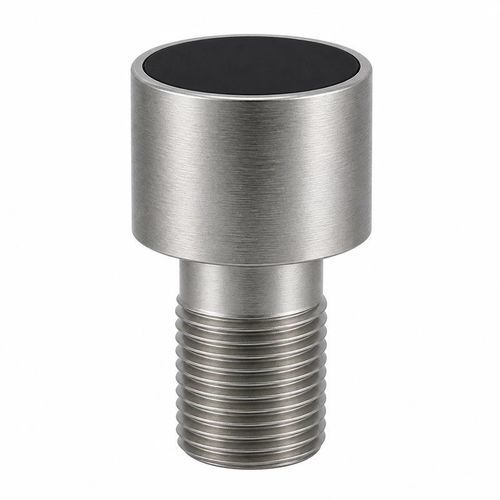

Concave array ultrasonic transducer BBMU-F5M

Focused ultrasound at 5 MHz
The BBMU-F5M is a focused ultrasound transducer operating at 5 MHz with a nominal focal distance of 84 mm. It is designed for focused-ultrasound experiments, medical ultrasound research, localized acoustic excitation and integration into dedicated focused-ultrasound systems.

Acoustic and electrical specifications

• Center frequency: 5 MHz
• Focal distance: 84 mm
• Refer to the manufacturer's datasheet for electrical impedance, bandwidth and drive recommendations

Mechanical and integration information

• Form factor suitable for laboratory setups and bench-top assemblies
• Mounting and connector details available on the datasheet
• Compatible with laboratory transmitters, amplifiers and focusing fixtures

Safety and intended use

• Intended for research and development; not a finished clinical device
• Follow applicable acoustic exposure guidelines and laboratory safety procedures
