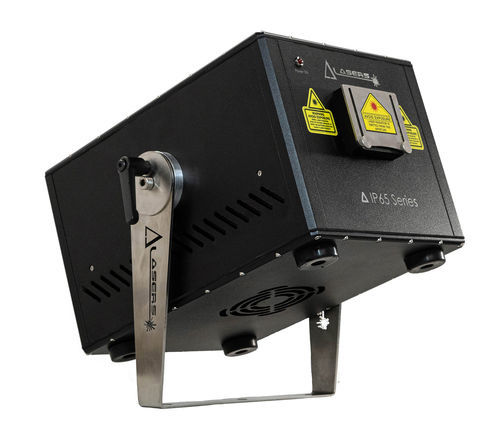

Marking laser projector Delta 3FB4

IP65waterproof

Overview
Delta 3FB4 IP65 is a projection laser engineered for outdoor and large-scale projection tasks. It integrates a 3 W RGB diode laser source and a Pangolin FB-4 controller in a weatherproof IP65 housing, combined with DT‑40 scanners for high-speed, clear projection suitable for shows, architectural mapping and advertising.

Applications

• Outdoor laser shows and events
• Architectural projections and building mapping
• Advertising, logos and lettering
• Large-scale projection for festivals and public displays

Key features

• Total optical laser power: 3000 mW (3 W)
• Wavelengths: 638 nm (red) / 530 nm (green) / 445 nm (blue)
• RGB individual powers: R 600 mW, G 900 mW, B 1600 mW
• Beam divergence: 1 mrad
• Scanning system: DT-40 scanners, 42 kpps @ 8° ILDA
• Maximum optical scanning angle: 60°
• Integrated hardware: Pangolin FB-4
• Control: Ethernet and DMX512 (XLR 5-pin)
• Modulation: Analog up to 100 kHz
• Cooling: Temperature‑controlled silent fans
• Interlock: Remote IN (emergency stop) and aperture mask
• Protection class: IP65 (weatherproof housing)
• Laser class: IV

Technical specifications

• Optical laser power (mW): 3000
• Wavelength (nm): 638 / 530 / 445
• Laser source RGB power (mW): R: 600 / G: 900 / B: 1600
• Beam divergence (mrad): 1
• Control signal: Ethernet, DMX512 (XLR 5-pins)
• Integrated hardware: Pangolin FB-4
• Scanning system: DT-40 / 42 kpps @ 8° ILDA
• Optical scanning angle: 60° Max
• Laser cooling: Temperature controlled silent fans
• Interlock: Remote IN (for emergency stop), Aperture mask
• Technology: Diode
• Laser class: IV
• Modulation: Analog (100 kHz)
• Protection class: IP65
• Accessories: Stainless steel mount
• Operating temperature: 10°C to +40°C
• Power connectors: powerCON TRUE1 TOP
• Power consumption: 300 W / 220 VAC
• Power supply: 110–240 VAC, 50/60 Hz
• Weight: 10 kg
• Flight case: Available on request

Control & integration

• Integrated Pangolin FB-4 for advanced show control and ILDA compatibility
• Network control via Ethernet and standard DMX512 (XLR 5-pin)
• Analog modulation up to 100 kHz for smooth color blending

Safety & operation

• Class IV laser: requires professional operation and safety measures
• Interlock inputs for emergency stop and mechanical aperture mask
• Operating temperature range: 10°C to +40°C

Accessories & logistics

• Delivered with stainless steel mount; flight case available on request
• Power connector: powerCON TRUE1 TOP; universal 110–240 VAC supply
• Net weight: 10 kg — suitable for rigging and touring installations
