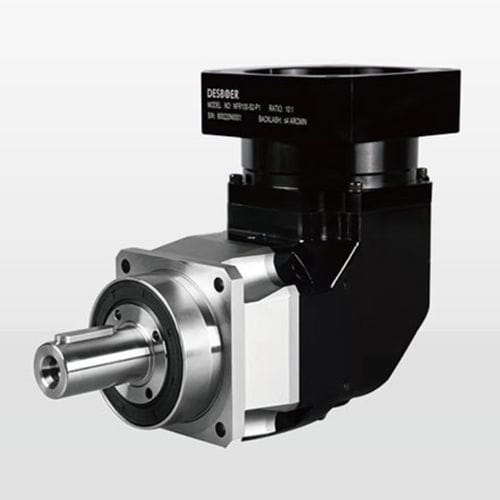

Planetary gearbox NFR serieshelical gearspiral bevelright angle
Add to favorites
Compare this product
Characteristics
- Type
- planetary, spiral bevel, helical gear
- Shaft orientation
- right angle
- Torque
- 200 - 500 Nm, 100 - 200 Nm, 50 - 100 Nm, 500 - 1000 Nm, 20 - 50 Nm, 1 - 2 kNm, 2 - 5 kNm
- Mounting
- flange-mounted
- Configuration
- compact, flange
- Number of stages
- single-stage, two-stage
- Performance
- high-precision, low-noise, high-efficiency, low-backlash
- Applications
- industrial, for textiles, for robotics, for pharmaceutical products, packaging machine, for welding machines, for printing machines, for machine tools, for medical devices, for automobiles
- Other characteristics
- IP65, with bearings, with plate
- Rotational speed
Max.: 8,000 rpm
(50,265.4825 rad.min-1)Min.: 1,500 rpm
(9,424.778 rad.min-1)- Backlash
Max.: 0.15 °
Min.: 0.03 °
- Gear ratio
Max.: 200 unit
Min.: 3 unit
- Weight
Max.: 125.3 kg
(276.24 lb)Min.: 3.1 kg
(6.83 lb)
Description
DESBOER NFR Series Right-Angle High-Precision Planetary Gearbox
We provide customers with high precision, high rigidity, high torque prdcision planetary gearbox
Model:47\64\90\110\140\200\255\285
Ratio:3 - 200
Backlash: ≤2arcmin -≤9arcmin
Nominal Output Torque: 35 - 3200 Nm
DESBOER NFR Series Right-Angle Gearbox: High-precision, high-torque performance with tapered roller bearings and spiral bevel gears. Quiet, smooth operation, enhanced radial/axial load capacity, 2–9 arcmin backlash, easy square flange mounting, 4-star rated for all servo applications.
1)、High performancr oil seal: Increased efficiency due to lowered friction.
IP65 protection level ensures continuous operation up to 90℃.
2)、High precision bearings: Ensuring a higher radial and axial load capacity.
3)、Helical gear: Optimized power transmission; Low noise; Improved precision.
4)、Intergrated planetary design: Increased torsional torque.
Optimized power transmission.
5)、Bevel gear: Optimized power transmission; Low noise; Improved precosion.
Application:
Currently, our products have been widely used in various industries, such as machine tools, robotic amms, printing equipment, textile machinery,packaging machinery, non-standard automation, medical equipment,inspection equipment, laser cutting, welding, automobile manufacturing,satellite communication, metal processing, pharmaceutical industry, etc.
We provide customers with high precision, high rigidity, high torque prdcision planetary gearbox
Model:47\64\90\110\140\200\255\285
Ratio:3 - 200
Backlash: ≤2arcmin -≤9arcmin
Nominal Output Torque: 35 - 3200 Nm
DESBOER NFR Series Right-Angle Gearbox: High-precision, high-torque performance with tapered roller bearings and spiral bevel gears. Quiet, smooth operation, enhanced radial/axial load capacity, 2–9 arcmin backlash, easy square flange mounting, 4-star rated for all servo applications.
1)、High performancr oil seal: Increased efficiency due to lowered friction.
IP65 protection level ensures continuous operation up to 90℃.
2)、High precision bearings: Ensuring a higher radial and axial load capacity.
3)、Helical gear: Optimized power transmission; Low noise; Improved precision.
4)、Intergrated planetary design: Increased torsional torque.
Optimized power transmission.
5)、Bevel gear: Optimized power transmission; Low noise; Improved precosion.
Application:
Currently, our products have been widely used in various industries, such as machine tools, robotic amms, printing equipment, textile machinery,packaging machinery, non-standard automation, medical equipment,inspection equipment, laser cutting, welding, automobile manufacturing,satellite communication, metal processing, pharmaceutical industry, etc.
