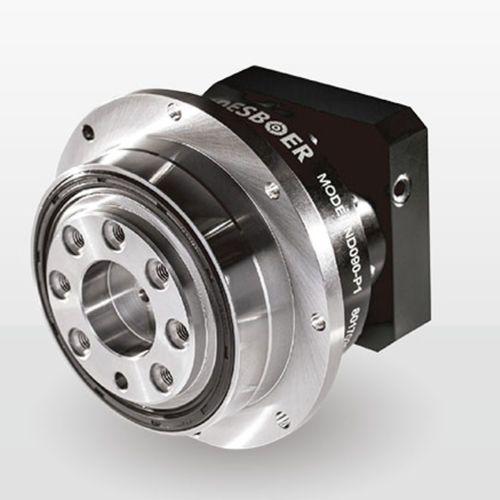

Planetary servo-gearbox ND serieshelical gearcoaxial20 - 50 Nm
Add to favorites
Compare this product
Characteristics
- Type
- planetary, helical gear
- Shaft orientation
- coaxial
- Torque
- 200 - 500 Nm, 100 - 200 Nm, 50 - 100 Nm, 20 - 50 Nm, 500 - 1000 Nm, 1 - 2 kNm
- Mounting
- flange-mounted
- Configuration
- flange
- Performance
- low-backlash, high-precision, high-efficiency, low-noise
- Applications
- for servo motors, for pharmaceutical products, for textiles, for machine tools, for robotics, packaging machine, for printing machines, for medical devices
- Other characteristics
- IP65
- Rotational speed
Min.: 2,000 rpm
(12,566.3706 rad.min-1)Max.: 10,000 rpm
(62,831.8531 rad.min-1)- Backlash
Min.: 0.02 °
Max.: 0.12 °
- Gear ratio
Min.: 4 unit
Max.: 100 unit
- Weight
Min.: 0.7 kg
(1.54 lb)Max.: 124.5 kg
(274.48 lb)
Description

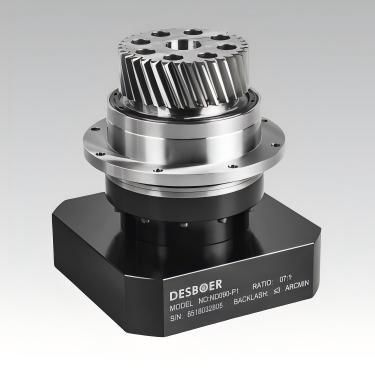

DESBOER ND Series Precision Planetary Gearbox for Servo Motor
We provide customers with high precision, high rigidity, high torque prdcision planetary gearbox
Model:47\64\90\110\140\200\255\285
Ratio:4 - 100
Backlash: ≤1arcmin -≤7 arcmin
Nominal Output Torque: 15 - 1140Nm
DESBOER ND Series takes Compact, quiet flange gearbox with 1–7arcmin backlash, IP65 protection, 3-star performance, and ISO 9409 compliance for reliable precision automation.
Key Features
DESBOER ND Series takes Compact, quiet flange gearbox with 1–7arcmin backlash, IP65 protection, 3-star performance, and ISO 9409 compliance for reliable precision automation.
1)、Monoblock housing design: Higher precision.
Ultimate tensile stiffness.
Higher torsional strenght.
2)、High precision bearings: Ensuring a higher radial and axial load capacity.
3)、High performance oil seal: Increased efficiency due to lowerer friction.
IP65 protection level ensures continuous operation up to 90℃.
4)、Helical gear: Optimized power transmission; Low noise; Improved precision.
5)、Intergrated planetary design: Increased torsional torque. Optimized power transmission.DESBOER ND Series Precision Planetary Gearbox for Servo Motor
Application:
Currently, our products have been widely used in various industries, such as machine tools, robotic amms, printing equipment, textile machinery,packaging machinery, non-standard automation, medical equipment,inspection equipment, laser cutting, welding, automobile manufacturing,satellite communication, metal processing, pharmaceutical industry, etc.
We provide customers with high precision, high rigidity, high torque prdcision planetary gearbox
Model:47\64\90\110\140\200\255\285
Ratio:4 - 100
Backlash: ≤1arcmin -≤7 arcmin
Nominal Output Torque: 15 - 1140Nm
DESBOER ND Series takes Compact, quiet flange gearbox with 1–7arcmin backlash, IP65 protection, 3-star performance, and ISO 9409 compliance for reliable precision automation.
Key Features
DESBOER ND Series takes Compact, quiet flange gearbox with 1–7arcmin backlash, IP65 protection, 3-star performance, and ISO 9409 compliance for reliable precision automation.
1)、Monoblock housing design: Higher precision.
Ultimate tensile stiffness.
Higher torsional strenght.
2)、High precision bearings: Ensuring a higher radial and axial load capacity.
3)、High performance oil seal: Increased efficiency due to lowerer friction.
IP65 protection level ensures continuous operation up to 90℃.
4)、Helical gear: Optimized power transmission; Low noise; Improved precision.
5)、Intergrated planetary design: Increased torsional torque. Optimized power transmission.DESBOER ND Series Precision Planetary Gearbox for Servo Motor
Application:
Currently, our products have been widely used in various industries, such as machine tools, robotic amms, printing equipment, textile machinery,packaging machinery, non-standard automation, medical equipment,inspection equipment, laser cutting, welding, automobile manufacturing,satellite communication, metal processing, pharmaceutical industry, etc.
