Bevel angle gearbox NBR series

spiral bevelright angleoutgoing shaft

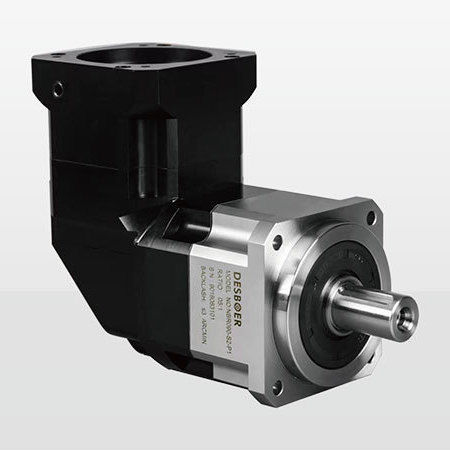

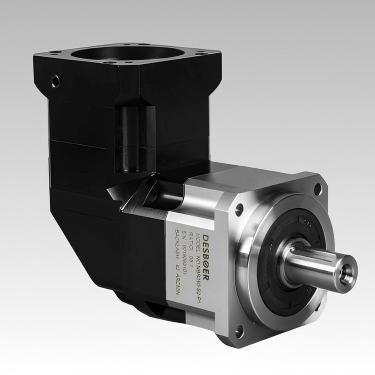

DESBOER NBR Series Right-Angle High-Precision Planetary Gearbox

We provide customers with a high precision, high rigidity, high torque precision planetary gearbox
Model:42\60\90\115\142\180
Ratio:3 - 200
Backlash: ≤2arcmin -≤9arcmin
Nominal Output Torque: 13 - 1140 Nm

DESBOER NBR Series right-angle high-precision planetary gearbox features a high-precision, high-strength spiral bevel gear design, delivering powerful, precise, quiet, smooth, and high-speed performance ideal for all servo applications.

Key Features

Our planetary gearboxes are designed for high precision servo applications. They feature compact structure, high load capacity and long service life, making them ideal for robotics, CNC machines and automation.

1)、High precision oil seal: Increased efficiency due to lower friction.
IP65 protection level ensures continuous operation up to 90℃.
2)、High precision bearings: Ensuring a higher radial and axial load capacity.
3)、Intergrated planetary design: Increased torsional torque.
Optimized power transmission.
4)、Monoblock housing design: Higher precision.
Ultimate tensile stiffness.
Higher torsional strenght.
5)、Helical gear: Optimized power transmission; Low noise; Improver precision.
6)、Bevel gear: Optimized power transmassion; Low noise; Improved precosion.
DESBOER NBR Series Right-Angle High-Precision Planetary Gearbox

Application:
Currently, our products have been widely used in various industries, such as machine tools, robotic amms, printing equipment, textile machinery,packaging machinery, non-standard automation, medical equipment,inspection equipment, laser cutting, welding, automobile manufacturing,satellite communication, metal processing, pharmaceutical industry, etc.
