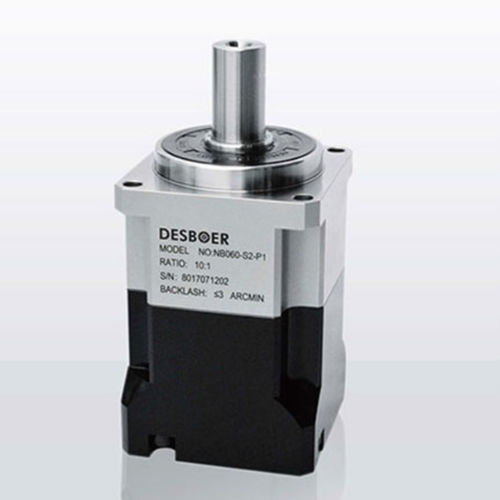

Planetary gear reducer NB serieshelical gearcoaxial10 - 20 Nm
Add to favorites
Compare this product
Characteristics
- Type
- planetary, helical gear
- Shaft orientation
- coaxial
- Torque
- 200 - 500 Nm, 100 - 200 Nm, 20 - 50 Nm, 50 - 100 Nm, 500 - 1000 Nm, 10 - 20 Nm
- Number of stages
- single-stage, two-stage
- Performance
- precision, high-precision, high-efficiency, low-noise, low-backlash
- Applications
- machine, for servo motors, for automation, for welding robots, for machine tools, for medical devices, for textiles, for automotive applications, packaging machine, welding, for continuous operation, for printing machines, for pharmaceutical products
- Other characteristics
- IP65
- Rotational speed
Min.: 5,000 rpm
(31,415.9265 rad.min-1)Max.: 10,000 rpm
(62,831.8531 rad.min-1)- Backlash
Min.: 0.02 °
Max.: 0.12 °
- Gear ratio
Min.: 3 unit
Max.: 100 unit
- Weight
Min.: 0.6 kg
(1.32 lb)Max.: 33 kg
(72.75 lb)
Description
DESBOER NB Series Precision Planetary Gearbox for Servo Moto
Model:42\60\90\115\142\180
Ratio:3 - 100
Backlash: ≤1arcmin -≤7 arcmin
Nominal Output Torque: 18 - 1140 Nm
NB series adopts the design of integrating its sun gear and input shaft, the design of integrating its output structure. Using high- strength bearing, the product itself is characterized by high load, high precision, and low noise, focusing on the use of automation equipment, various types of packaging, printing, lithium-ion, LCD screens, robots, palletizers, woodworking, doors and windows and other industry sectors.
Application:
Currently, our products have been widely used in various industries, such as machine tools, robotic amms, printing equipment, textile machinery,packaging machinery, non-standard automation, medical equipment,inspection equipment, laser cutting, welding, automobile manufacturing,satellite communication, metal processing, pharmaceutical industry, etc.
1)、High precision bearings: Ensuring a higher radial and axial capacity.
2)、High performance oil seal: Increased efficiency due to lowered friction;
IP65 protection level ensures continuous operation up to 90℃.
3)、Helical gear: Optimized power transmission; Low noise; Improver precision.
4)、Intergrated planetary design: Increased torsional torque; Optimized power transmission.
Model:42\60\90\115\142\180
Ratio:3 - 100
Backlash: ≤1arcmin -≤7 arcmin
Nominal Output Torque: 18 - 1140 Nm
NB series adopts the design of integrating its sun gear and input shaft, the design of integrating its output structure. Using high- strength bearing, the product itself is characterized by high load, high precision, and low noise, focusing on the use of automation equipment, various types of packaging, printing, lithium-ion, LCD screens, robots, palletizers, woodworking, doors and windows and other industry sectors.
Application:
Currently, our products have been widely used in various industries, such as machine tools, robotic amms, printing equipment, textile machinery,packaging machinery, non-standard automation, medical equipment,inspection equipment, laser cutting, welding, automobile manufacturing,satellite communication, metal processing, pharmaceutical industry, etc.
1)、High precision bearings: Ensuring a higher radial and axial capacity.
2)、High performance oil seal: Increased efficiency due to lowered friction;
IP65 protection level ensures continuous operation up to 90℃.
3)、Helical gear: Optimized power transmission; Low noise; Improver precision.
4)、Intergrated planetary design: Increased torsional torque; Optimized power transmission.
