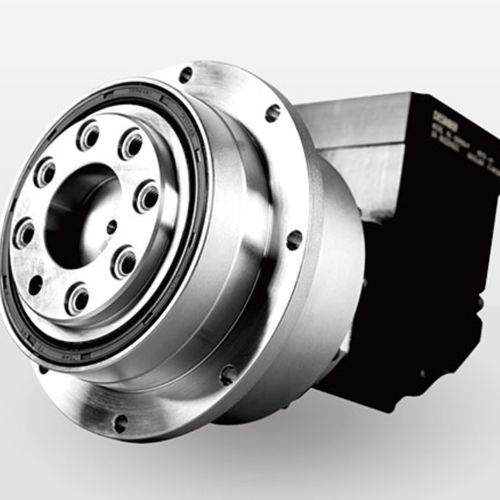

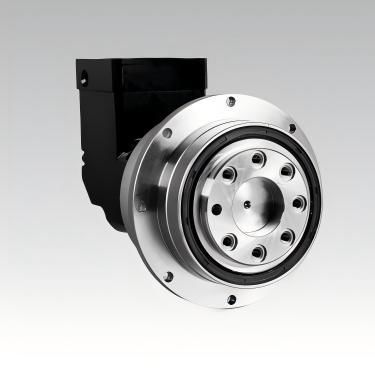

Planetary gearbox NDR serieshelical gearspiral bevelright angle
Add to favorites
Compare this product
Characteristics
- Type
- planetary, spiral bevel, helical gear
- Shaft orientation
- right angle
- Torque
- 200 - 500 Nm, 100 - 200 Nm, 50 - 100 Nm, 500 - 1000 Nm, 20 - 50 Nm, 1 - 2 kNm, 2 - 5 kNm, 10 - 20 Nm, 1000 - 5000 Nm
- Mounting
- flange-mounted
- Number of stages
- single-stage, two-stage
- Performance
- precision, low-noise, high-efficiency, low-backlash, high-torque, for heavy loads
- Applications
- for welding machines, for textiles, for robotics, for servo motors, for pharmaceutical products, for automation, packaging machine, for printing machines, for machine tools, for medical devices, for automobiles
- Other characteristics
- IP65
- Rotational speed
Max.: 10,000 rpm
(62,831.8531 rad.min-1)Min.: 2,000 rpm
(12,566.3706 rad.min-1)- Backlash
Max.: 0.12 °
Min.: 0.02 °
- Gear ratio
Max.: 200 unit
Min.: 4 unit
- Weight
Max.: 125.5 kg
(276.68 lb)Min.: 2.1 kg
(4.63 lb)
Description
DESBOER NDR Series Right-Angle High-Precision Planetary Gearbox
We provide customers with high precision, high rigidity, high torque prdcision planetary gearbox
Model:47\64\90\110\140\200\255\285
Ratio:4 - 200
Backlash: ≤1arcmin -≤7 arcmin
Nominal Output Torque: 15 - 3600 Nm
DESBOER NDR Series takes high-precision flange gearbox with spiral bevel gears, 2–9 arcmin backlash, 4-star performance, and high torque/load capacity for heavy-duty servo systems.
1)、High performance oil seal: Increased efficiency due to lowered friction.
IP65 protection level ensures continuous operation up to 90℃.
2)、High precision bearings: Ensuring a higher radial and axial load capacity.
3)、Helical gear: Optimized power transmission; Low noise; Improved precision.
4)、Intergrated planetary design: Increased torsional torque.
Optimized power transmission.
5)、Bevel gear: Optimized power transmassion; Low noise; Improved precosion.DESBOER NDR Series Right-Angle High-Precision Planetary Gearbox
Application:
Currently, our products have been widely used in various industries, such as machine tools, robotic amms, printing equipment, textile machinery,packaging machinery, non-standard automation, medical equipment,inspection equipment, laser cutting, welding, automobile manufacturing,satellite communication, metal processing, pharmaceutical industry, etc.
We provide customers with high precision, high rigidity, high torque prdcision planetary gearbox
Model:47\64\90\110\140\200\255\285
Ratio:4 - 200
Backlash: ≤1arcmin -≤7 arcmin
Nominal Output Torque: 15 - 3600 Nm
DESBOER NDR Series takes high-precision flange gearbox with spiral bevel gears, 2–9 arcmin backlash, 4-star performance, and high torque/load capacity for heavy-duty servo systems.
1)、High performance oil seal: Increased efficiency due to lowered friction.
IP65 protection level ensures continuous operation up to 90℃.
2)、High precision bearings: Ensuring a higher radial and axial load capacity.
3)、Helical gear: Optimized power transmission; Low noise; Improved precision.
4)、Intergrated planetary design: Increased torsional torque.
Optimized power transmission.
5)、Bevel gear: Optimized power transmassion; Low noise; Improved precosion.DESBOER NDR Series Right-Angle High-Precision Planetary Gearbox
Application:
Currently, our products have been widely used in various industries, such as machine tools, robotic amms, printing equipment, textile machinery,packaging machinery, non-standard automation, medical equipment,inspection equipment, laser cutting, welding, automobile manufacturing,satellite communication, metal processing, pharmaceutical industry, etc.
