Box computer VCX700-MTH
wall-mountedin-vehicleIntel® Core™ Ultra 7 155U

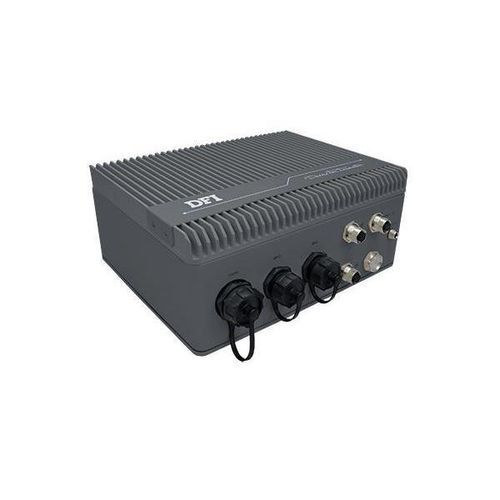

Box computer - VCX700-MTH - DFI - wall-mounted / in-vehicle / Intel® Core™ Ultra 7 155U
Box computer - VCX700-MTH - DFI - wall-mounted / in-vehicle / Intel® Core™ Ultra 7 155U
Box computer - VCX700-MTH - DFI - wall-mounted / in-vehicle / Intel® Core™ Ultra 7 155U - image - 2
Box computer - VCX700-MTH - DFI - wall-mounted / in-vehicle / Intel® Core™ Ultra 7 155U - image - 3
Box computer - VCX700-MTH - DFI - wall-mounted / in-vehicle / Intel® Core™ Ultra 7 155U - image - 4
Box computer - VCX700-MTH - DFI - wall-mounted / in-vehicle / Intel® Core™ Ultra 7 155U - image - 5
Add to favorites
Compare this product
Go to the DFI website for more information

Characteristics

Type
box
Configuration
in-vehicle, wall-mounted
Processor
Intel® Core™ Ultra 7 155U, Intel® Core™ Ultra 5 125U
Ports
Ethernet, LPDDR5, HDMI, RS-232, USB 3.2, M.2 Key E, 2.5 GbE, WiFi, SIM card, Mini PCIe, CAN bus, M.2 Key B
Data storage
SSD 512GB, SSD 128GB, SSD 256GB
Operating system
Linux, Windows 10 IoT Enterprise, Windows 11 IoT Enterprise
Domain
for harsh environments
Protection level
MIL-STD-810G, IP67, IP69K
Other characteristics
fanless, PoE
Memory
32 GB, 64 GB

Description

Product Overview
  • A ruggedized, IP67-rated, fanless in-vehicle system built for harsh environments.
  • Intel Core Ultra processor with LPDDR5-6400 soldered memory
  • 1x 2.5GbE & 1x GbE Ethernet ports with OOB or 2 x 802.11af GbE PoE (By request)
  • 2 x CAN FD, 2x RS232 via IP67-rated combo connector
  • Build-in 9 axis sensor for driver detection within fleet management
  • Wide voltage: 9~36V vehicle power input with ACC/IGN function
  • Wide temperature up to -40°C ~ 70°C

Key Features
  • Wide Voltage: 9~36V DC-in
  • Wide-temp: -40~70°C
  • Rugged Design
  • Out-of-band (OOB)
  • 9-axis IMU Sensor
  • Hybrid Connectivity

Certifications
  • RoHS Certification
  • CE Certification
  • FCC Certification

Technical Specifications
  • System
    • Processor: Intel® Core™ Ultra 7/5 Processors, TDP 15W; Intel® Core™ Ultra 7 155U, 12C, 12M Cache, 1.7GHz (4.8GHz); Intel® Core™ Ultra 5 125U, 12C, 12M Cache, 1.3GHz (4.3GHz)
    • Memory: Dual Channel LPDDR5/x 6400MHz memory down Up to 32GB (64GB per request)
    • BIOS: AMI SPI 256Mbit
  • Graphics
    • Controller: Intel® Arc™ Graphics
    • Feature: OpenGL 4.6, Direct X 12.2, OpenCL 3.0; HW Decode: HEVC, VP9, AV1, AVC; HW Encode: HEVC, VP9, AV1, AVC
    • Display: 1 x HDMI 1.4b; HDMI: resolution up to 4096x2160@24Hz
  • Storage
    • M.2 SSD (M Key): 256GB Available (128GB/512GB by project support)
  • Expansion
    • Interface: 1 x M.2 3052 B key (PCIe x1 & USB3.0/2.0) (for LTE or 5G module, optional); 1 x M.2 2230 E Key (PCIe x1 & USB2.0) (for Wi-Fi module, optional)
  • Ethernet
    • Controller: 2 x Intel® i226IT (10/100/1000/2500Mbps)
  • LED
    • Indicators: 1 x Power Status LED
  • Side I/O
    • Display: 1 x HDMI
    • SIM: 1 x SIM card slot
    • USB: 2 x USB 3.2
  • Top I/O
    • Antenna Connectors: 6 x Antenna (for Wi-Fi, LTE, 5G)
  • Bottom I/O
    • USB: 2 x USB 3.2
    • Combo Port: 2 x RS232 and 2 x CAN FD
    • Power: 1 x 9~36V DC-IN with ignition control
    • Vent: 1 x Vent
    • Ethernet/PoE: LAN1 2.5GbE, M12 A-coded; LAN2 1GbE with OOB, M12 A-coded; (2 x 802.11af GbE PoE, M12 X-coded connectors, max 15.4W) (By request)
  • Watchdog Timer
    • Output & Interval: System Reset, Programmable via Software from 1 to 255 Seconds
  • Power
    • Type: DC-in 9~36V with ignition control
    • Connector: M12 D-code
  • OS Support
    • Microsoft: Windows 10 IoT Enterprise 64-bit; Windows 11 IoT Enterprise LTSC 2024
    • Linux: Linux
  • Environment
    • Operating Temperature: -20 to 70°C; -40 to 70°C (By request)
    • Storage Temperature: -40 to 85°C
    • Relative Humidity: 5 to 95% RH (non-condensing)
  • Mechanism
    • Mounting: Wall mount
    • Dimensions (W x H x D): 239.24 x 194 x 101 mm
    • Weight: 3.62 kg
  • Standards and Certifications
    • Shock: Operation shock test: Half Sine Wave 15G, 11ms, 3 Shock Per Axis
    • Vibration: Operation Vibration test: MIL-STD-810G 514.6C-2, Figure 514.6C-2
    • Certifications: CE, FCC class A, ROHS
    • Construction: IP67/ IP69K enclosure
  • Packing List
    • 1 VCX700-MTU system unit
    • 1 COMBO cable (for COM & CAN BUS)
    • 2 LAN cable
    • 6 Dust cover (for antenna connector)
    • 1 DC input cable
  • Country of Origin
    • Taiwan
