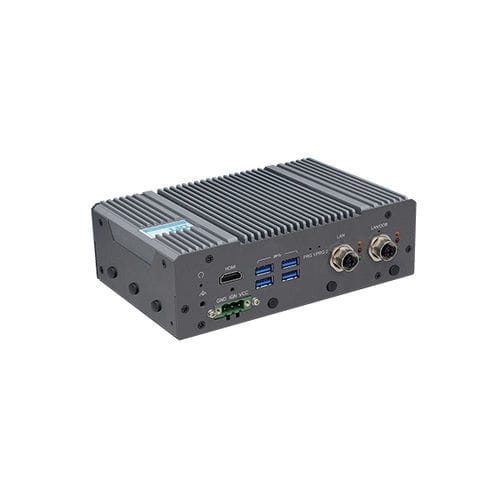

Expansion PC VC700-ASL

wall-mountedin-vehicleIntel Atom® x7433RE

Overview

• Compact fanless in-vehicle computer with Intel® Atom x7000E family CPU options (x7835RE, x7433RE, x7211RE)
• ITxPT certified platform for fleet and vehicle applications
• Wide vehicle power input (9~36V DC) with ACC/IGN and ignition control
• Built-in 9-axis IMU for driver detection and fleet sensing
• Multiple expansion: 2×Mini-PCIe, 3×M.2 for CAN/GNSS/LTE/5G/Wi‑Fi/storage
• Rugged I/O: 2×GbE (M12), isolated 8-bit DIO, 2×CAN, wide temp range

Key Features

• Wide voltage input: 9~36V DC with ignition
• Fanless, compact rugged housing (aluminum + SPGC metal)
• Operating temperature: -40 to 70°C
• Built-in 9-axis IMU (3A + 3G + 3M)
• Out-of-band (OOB) management and TPM 2.0
• Rich expansion and storage options (M.2, Mini-PCIe, swappable 2.5" bays)

Detailed Specifications
System
Processor : Intel® Atom x7000E series (Amston Lake). Options: x7835RE (8 cores, 1.3–3.6 GHz, 12W); x7433RE (4 cores, 1.5–3.4 GHz, 9W); x7211RE (2 cores, 1.0–3.2 GHz, 6W).
Memory : 4GB / 8GB LPDDR5-5200 (soldered).
BIOS : AMI SPI 64 Mbit.

Graphics
Controller : Intel® HD Graphics (up to 32 EUs).
Display : 1×HDMI 1.4b (up to 4096×2160 @24Hz); 1×DP++ (up to 4096×2160 @24Hz).

Storage
External : Optional 2×swappable 2.5" SATA bays.
Internal : eMMC 64GB or 128GB (removable module option).

Expansion
Interfaces : 1×M.2 2230 A+E (USB2.0/PCIe); 1×M.2 3042/3052 B key (USB3.0/USB2.0/PCIe) with Nano SIM; 1×M.2 2242/2280 B+M (PCIe/SATA); 2×Mini-PCIe (1 half, 1 full).

Ethernet
Controller : 2×Intel i210 GbE.
Interface : 2×GbE with M12 X-code connectors.

GNSS
Support : u‑blox NEO‑M9N (GPS/QZSS/Galileo/GLONASS/BeiDou). Dead reckoning on request.

Sensor
9‑axis IMU (3‑axis accelerometer, 3‑axis gyroscope, 3‑axis magnetometer) for vehicle/fleet sensing and driver detection.

Front I/O

• Ethernet: 2×GbE (M12 X-code) (one shared with OOB)
• USB: 4×USB 3.2 Type‑A
• Display: 1×HDMI
• Buttons: Reset
• Antenna: 3×Fakra holes

Rear I/O

• Serial: 2×RS‑232/422/485 (DB9‑M)
• DIO: Isolated 8‑bit DIO, 1.5 kV isolation (0–30 VDC input)
• Display: 1×DP++
• Audio: Amplifier to drive 10W speaker + 3.5 mm Line Out/Mic In
• CAN: 2×CAN 2.0B (DB9‑M), J1939 support (CAN FD on request)
• Antenna: 2×Fakra holes

Side I/O
Antenna holes: 3×Fakra.

Watchdog Timer
Output & Interval : System reset, programmable from 1 to 255 seconds.

Security
TPM : TPM 2.0 (Nuvoton).

Power
Type : Wide range 9~36 V DC with ignition control (ACC/IGN).
Connector : 3‑pole terminal block.

OS Support
Microsoft : Windows 10 / Windows 11.
Linux : Ubuntu 22.04.

Environment
Operating Temperature : -40 to 70°C.
Storage Temperature : -40 to 85°C.

Mechanism
Construction : Aluminum + SPGC metal.
Mounting : Wall mount.
Dimensions (W×H×D) : 182.4 × 61.5 × 118.4 mm; 182.4 × 93.5 × 118.4 mm (with 2.5" bays).
Color : Black.

Standards & Certifications

• Shock: MIL‑STD‑810G Method 516.6 Procedure 1 (operating/non‑operating)
• Vibration: MIL‑STD‑810G Method 514.6 Category 4
• Certifications: CE, FCC, E‑Mark (E24), ITxPT, RoHS, UKCA (TBD)

Country of Origin
Taiwan

Technical specifications

• Model: VC700-ASL
• CPU options: Intel® Atom x7835RE / x7433RE / x7211RE
• Memory: 4GB / 8GB LPDDR5‑5200 (soldered)
• Graphics: Intel® HD Graphics (up to 32 EUs)
• Storage: eMMC 64/128GB; optional 2×swappable 2.5" SATA
• Expansion: 3×M.2, 2×Mini‑PCIe
• Ethernet: 2×Intel i210 GbE (M12)
• GNSS: u‑blox NEO‑M9N
• I/O: 4×USB 3.2, HDMI, DP++, 2×RS‑232/422/485, isolated 8‑bit DIO
• Audio: Amp for 10W speaker + Line Out/Mic In
• CAN: 2×CAN 2.0B, J1939 (CAN FD on request)
• Sensor: Built‑in 9‑axis IMU
• Power: 9~36V DC with ignition
• Temp: -40 to 70°C
• Dimensions: 182.4×61.5×118.4 mm
