EDGE computer VC230-AL
mobilewall-mountedVESA mounting

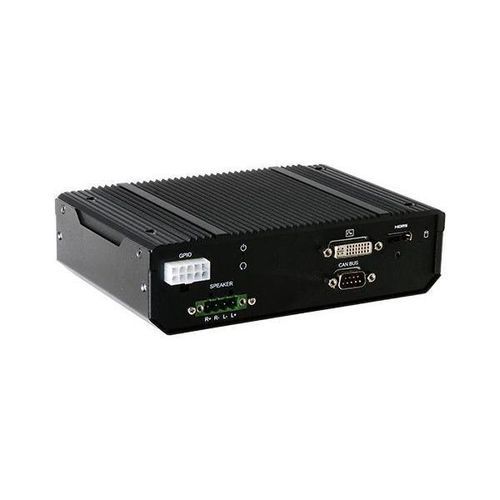

EDGE computer - VC230-AL - DFI - mobile / wall-mounted / VESA mounting
EDGE computer - VC230-AL - DFI - mobile / wall-mounted / VESA mounting
EDGE computer - VC230-AL - DFI - mobile / wall-mounted / VESA mounting - image - 2
EDGE computer - VC230-AL - DFI - mobile / wall-mounted / VESA mounting - image - 3
Add to favorites
Compare this product
Go to the DFI website for more information

Characteristics

Type
EDGE
Configuration
in-vehicle, wall-mounted, mobile, VESA mounting
Processor
Intel® Atom x7-E3950, Intel® Atom® x5-E3940, Intel® Atom x5-E3930, Intel® Atom E3900
Ports
RS-232, HDMI, DDR3L SODIMM, USB 2.0, USB, RS-485, CAN bus, USB 3.0, 4G, Mini PCIe, dual SIM, RS-422, mSATA, RJ45, GPS, GNSS
Data storage
eMMC 64GB, eMMC 32 GB
Operating system
Linux, Windows 10
Size
compact, small
Domain
network, safety, fast, fleet management
Protection level
robust, MIL-STD-810G
Other characteristics
fanless, wireless, telematics

Description

Product Overview
  • Anti-vibration and fanless in-vehicle computer
  • Supports ignition delay on/off function
  • 1 mSATA, eMMC storage options
  • Support GNSS by default
  • Dual SIM support for cellular
  • Supports Wi-Fi, LTE, and CAN bus communication
  • 15-Year CPU Life Cycle Support Until Q4' 31 (Based on Intel IOTG Roadmap)

Key Features
  • Wide Voltage: 9~36V DC-in
  • Fanless Design
  • Display: HDMI and DVI-I
  • Wide-temp: -40~70°C

Product Details
  • DFI VC230-AL is a fanless in-vehicle system powered by Intel Atom® E3900 series, featuring reliability, real-time data transmission, and SWap (small, lightweight, and low power consumption) with complete in-vehicle I/O and communication interfaces. It’s the vehicle information hub suitable for mobile telematics applications including fleet management, IoT edge computing, and more.
  • Supports dual SIM cards via Mini PCIe to match different telecom operators to avoid network interruption. Built-in GNSS provides accurate vehicle positioning.
  • DFI MPE-CAN2 CAN Bus Modules enable scalable and compact system integration, supporting error detection, information sharing, and fast data transmission among ECUs for improved driving safety.
  • Certified by E-Mark, MIL-STD-810G vibration-proof, CE, FCC, and RoHS, ensuring robust operation and compliance with safety and environmental standards.
  • Operates reliably in extreme environments with an extended temperature range from -40°C to 70°C.
  • Complies with RED (Radio Equipment Directive) for electromagnetic compatibility and efficient radio spectrum use.
  • Supports Power Ignition for safe shutdown and protection from overcurrent and overvoltage.

Technical Specifications
System
  • Processor: Intel Atom® Processor E3900 Series, BGA 1296
    • Intel Atom® x7-E3950 Processor, Quad Core, 2M Cache, 1.6GHz (2.0GHz), 12W
    • Intel Atom® x5-E3940 Processor, Quad Core, 2M Cache, 1.6GHz (1.8GHz), 9W
    • Intel Atom® x5-E3930 Processor, Dual Core, 2M Cache, 1.3GHz (1.6GHz), 6.5W
  • Memory: 1 DDR3L 1600/1866MHz SODIMM, up to 8GB
  • BIOS: Insyde SPI 64Mbit

Graphics
  • Controller: Intel® HD Graphics
  • Display: 1 x HDMI (up to 3840x2160 @ 60Hz), 1 x DVI-I (up to 2560x1600 @ 60Hz)
  • Dual Displays: HDMI + DVI-I

Storage
  • Internal: 32GB/64GB eMMC onboard, 1 x mSATA slot

Expansion
  • 1 x Full-size Mini PCIe (PCIe/USB/Dual micro SIM)
  • 1 x Full-size Mini PCIe (PCIe/USB/micro SIM)
  • 1 x Half-size Mini PCIe (shared with 1 x mSATA slot)

Ethernet
  • Controller: 2 x Intel® I210AT PCIe (10/100/1000Mbps)
  • Interface: 2 x RJ45 GbE ports

GNSS
  • Support GPS, Gallileo, GLONASS, BeiDou by u-blox NEO-M8N
  • Dead reckoning support upon request

LED Indicators
  • 1 x Power LED
  • 1 x Storage LED

Front I/O
  • Display: 1 x HDMI, 1 x DVI-I
  • Audio: 1 x 4pins 5.00mm terminal block connector
  • DIO: Isolated 8 bits DIO via 2 x 5pin 4.2mm power connector (Input voltage: 0 to 30VDC, Output current: 50mA per pin, Max. 200mA total, On-state voltage: 12VDC nominal, open collector to 30VDC)
  • Buttons: 1 x Reset button
  • CANBus: Supports dual CAN bus via 1 x DB9 port by DFI MPE-CAN2 Mini PCIe module (optional)
  • Antenna: 3 x SMA antenna holes

Rear I/O
  • Ethernet: 2 x GbE (RJ-45)
  • Serial: 1 x RS-232/422/485 (DB9-M)
  • USB: 2 x USB 2.0 (type A), 2 x USB 3.0
  • Antenna: 1 x SMA antenna hole, 1 x FME antenna hole

Watchdog Timer
  • System reset, programmable via software from 1 to 255 seconds

Power
  • Type: Wide range 9~36V with ignition control
  • Connector: 3-pin terminal block (VCC/ACC/GND)

OS Support
  • Windows 10 64-bit
  • Linux
  • CentOS 7

Environment
  • Operating Temperature: -40 to 70°C
  • Storage Temperature: -40 to 85°C

Mechanism
  • Construction: Aluminum + SPGC Metal
  • Mounting: Wall/VESA mount
  • Dimensions: 180mm x 50mm x 121.2mm (W x H x D)
  • Weight: 1 kg including CPU and memory

Standards and Certifications
  • Shock: MIL-STD-810G 516.6
  • Vibration: MIL-STD 810G 514.6C-3
  • Certifications: CE/FCC Class B/E-mark (E13), RoHS

Country of Origin
  • Taiwan

Ordering Information
  • VC230-AL-E3950: Fanless, Intel Atom X7-E3950, 4GB DDR3L-1866, 32GB eMMC, 2 LAN, 1 HDMI, 1 DVI-I, 1 COM, 4 USB, F/G RoHS
  • VC230-AL-E3940: Fanless, Intel Atom X5-E3940, 4GB DDR3L-1866, 32GB eMMC, 2 LAN, 1 HDMI, 1 DVI-I, 1 COM, 4 USB, F/G RoHS
  • VC230-AL-E3930: Fanless, Intel Atom X5-E3930, 4GB DDR3L-1866, 32GB eMMC, 2 LAN, 1 HDMI, 1 DVI-I, 1 COM, 4 USB, F/G RoHS

Optional Items
  • mSATA Card (64GB/32GB/16GB MLC, RoHS)
  • WiFi kit (Wireless module, Antenna cable*2, 200mm, WPEA-121N a/b/g/n, RoHS)
  • 4G LTE kit (Quectel EG25G-E 4G Mini PCIe module, Antenna*3, SMA cables*3)
  • Wall mount kit, RoHS
  • VESA mount kit, RoHS
  • Power adaptor cable with power ignition switch and Terminal Block 1*3P/5.0mm to system unit, and DC Jack to power adaptor, L=100mm

Certifications
  • RoHS Certification
  • CE Certification
  • FCC Certification
  • E-Mark (E13) Certification

Tags
  • Intel
  • CAN-Bus
  • Mini PCIe
  • Fanless Design
  • Windows
  • Linux
  • DVI-I
  • DDR3L
  • E-Mark (E13) Certification
  • RoHS Certification
  • FCC Certification
  • In-Vehicle

Technical Characteristics / Specifications
  • Processor: Intel Atom® E3900 Series (x7-E3950, x5-E3940, x5-E3930)
  • Memory: 1 DDR3L SODIMM, up to 8GB
  • Storage: 32GB/64GB eMMC onboard, 1 x mSATA slot
  • Expansion: 2 x Full-size Mini PCIe, 1 x Half-size Mini PCIe
  • Ethernet: 2 x Intel® I210AT PCIe, 2 x RJ45 GbE ports
  • GNSS: u-blox NEO-M8N (GPS, Gallileo, GLONASS, BeiDou)
  • Operating Temperature: -40 to 70°C
  • Certifications: CE, FCC, E-Mark (E13), RoHS, MIL-STD-810G
  • Dimensions: 180mm x 50mm x 121.2mm
  • Weight: 1 kg
  • Country of Origin: Taiwan
