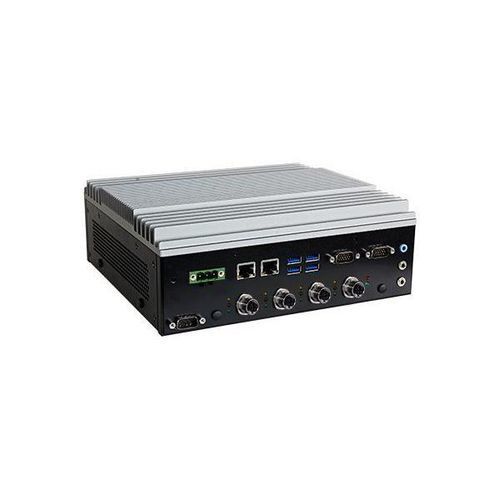

Expansion computer VC500-CMS

wall-mountedin-vehicle10th generation Intel® Core™

Product Overview

• High Performance Fan-less In-Vehicle System
• Supports 10th Gen Intel® Xeon/Core™/Pentium/Celeron Processors
• 4 x PoE or 2 x 10G SFP+ Ports
• 1 miniPCIe and 4 M.2 slots for CAN bus/LTE/5G/WiFi/Storage modules
• 2KV Isolated 16bits DIO ports
• Supports M.2 B key 3042/3052 5G-NR module with dual SIM
• OOB management support upon request
• 15-Year CPU Life Cycle Support Until Q1' 34 (Based on Intel IOTG Roadmap)

Key Features

• Wide-temp: -20~70°C
• Fanless Design
• Mini PCIe
• Multiple Expansion
• 15 Years CPU Life Cycle Support
• DDR4
• Triple Independent Display
• Wide Voltage: 9~48V DC-in

Certifications

• RoHS Certification
• CE Certification
• FCC Certification
• UKCA Certification
• E-Mark (E24) Certification

Technical Specifications

• Processor: 10th Gen Intel® Xeon/Core™/Pentium/Celeron Processors, LGA 1200 Socket. Options include Xeon-1270TE, Core™ i9-10900TE, i7-10700TE, i5-10500TE, i3-10100TE, Pentium® G6400TE, Celeron® G5900TE.
• Chipset: Intel® Q470E, W480E, or H420E Chipset depending on model.
• Memory: Dual SO-DIMM slots (horizontal type) with anti-vibration bracket. Dual Channel DDR4 2933/2666/2400/2133 SDRAM, up to 64GB. ECC support for Xeon-1270TE processor only.
• BIOS: AMI SPI 256Mbit
• Graphics: Intel® UHD Graphics 630 (processor integrated). Features: OpenGL 4.5, DirectX 12, OpenCL 2.1. HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9. HW Encode: AVC/H.264, MPEG2, JPEG, HEVC/H265, VP8, VP9. Display: Support DP++/DP 1.4, Resolution up to 4096x2304 @60Hz for DP, 1 x HDMI with lock hole, 2 x DP ports with lock hole. Triple Displays: 1 HDMI + 2 DP++.
• Storage: External: 2 x swappable 2.5" SATA drive bays with lock on rear panel, Supports RAID 0/1. Internal: 1 x M.2 2280 M Key slot, supports 2242, 2260 & 2280 devices and NVME SSD, PCIe x4 & SATA signal, support boot up function.
• Audio: Realtek ALC888. Interface: 1 x Mic-in and 1 x Line-in (front), 1 x Line-out, 1 x Mic-in and 1 x Line-in with 3.5mm audio jacks (front I/O).
• Ethernet: 1 x Intel® i219LM with iAMT11.0 support (Core i7/i5 only), 1 x Intel® i210IT. Front I/O: 2 x RJ45 GbE ports.
• LED Indicators: 1 x Storage Activity (Red), 1 x Power Status (Yellow), 2 x Programmable general purpose (Green, Blue).
• Front I/O: Ethernet: 2 x RJ45 GbE ports. Serial: 1 x DB-9 RS232 ports (COM 5). USB: 4 x USB 3.1 Gen2 (Q470E/W480E), 2 x USB 3.1 Gen2 (H420E). Audio: 1 x Line-out, 1 x Mic-in and 1 x Line-in with 3.5mm audio jacks. DIO: 2 x Isolated DIO port by 2 x DB-15 female connectors (Q470E/W480E), Supports 8bit DI & 8 bit DO with 2KV isolation. Antenna: 2 x antenna holes. DC in: 3 pin terminal block connector. OOB: Optional RJ45 port for OOB management. PoE/10G: 4x 802.11af PoE ports at RJ45 or M12 X-coded connectors, max 15.4W (PSE side) or 2x 10G fiber ports at SFP+ cage based on Intel X710-BM2 Ethernet controller (Q470E/W480E).
• Rear I/O: Serial: 4 x DB-9 RS232/422/485 ports by BIOS selection (COM 1/2/3/4). USB: 4 x USB 3.1 Gen2. Display: 2 x DP++ ports, 1 x HDMI port. Buttons: 1 x Power button, 1 x Reset button. Switch: 2-pin remote switch. Antenna: 2 x antenna holes. SIM: 3 x accessible SIM slots with cover bracket. CANBus: 2 x DB-9 ports for CAN bus (optional).
• Side I/O: Antenna Hole: 2 x antenna holes on right side, 2 x antenna holes on left side.
• Internal I/O: Serial: 1 x 2x5 pin block header for RS232. Mini PCIe: 1 x mini PCIe slot with SIM holder on faceplate, Supports WiFi/BT/LTE or CAN bus module. M.2: Total 3 x M.2 slots (1 x 2230 E-key slot (PCIe x1 & USB2.0), 1 x 3042/3052 B-key (USB3.0 & PCIex1) with dual SIM slots on faceplate, 1 x 2242/2280 M-Key-slot (PCIe gen3 x4 & SATA) supporting Intel® Optane memory and NVMe).
• Cooling: Passive cooling (fanless)
• Security: Supports dTPM2.0 by default (disabled by BIOS setting), Optional fTPM2.0 supported (Q470E/W480E).
• Hardware Monitor: Support 3-axis femto accelerometer, User-selectable ±2g/±4g/±8g/±16g scale, Supports 6D/4D orientation detection, Free-fall detection, Motion detection and sleep-to-wake and return-to-sleep.
• Power: Type: 3pin 3W3 connector (Q470E/W480E), 3 pin terminal block (H420E). Supply: Wide Range 9~50VDC with power management (on/off delay) and ignition.
• OS Support: Microsoft: Windows 10 IoT Enterprise RS5, Windows 11 IoT Enterprise LTSC SW. Linux: Ubuntu Linux 20.04.
• Environment: Operating Temperature: -20°C to 70°C (without turbo boost and throttling is expected). Storage Temperature: -40°C to 85°C. Relative Humidity: 10% to 95% (non-condensing).
• Mechanism: Construction: Metal + Aluminum. Mounting: Wall mount. Dimensions (W x H x D): 235 x 87.5 x 221mm (mounting bracket excluded). Weight: 5.5 kg. Color: Black and Silver.
• Standards and Certifications: Shock: MIL-STD-810G Method 516.6, Procedure 1, OP:10G 11ms, Non-OP: 40G 11ms (Tested by SSD, HDD is not supported). Vibration: MIL-STD-810G Method 514.6C-3, Category 4 Composite wheeled vehicle Table 514.6C-VI. Certifications: FCC, E-Mark (E24), CE, RoHS, UKCA.
• Packing List: 1 VC500-CMS system unit, 1 Power connector, 1 Mounting bracket, 1 3W3 adaptor cable.
• Country of Origin: Taiwan

Ordering Information
Model Name | Part Number | Description
VC500-CMS-POEM12-Q | 750-VC50000-000G | Q470E, 8 USB 3.1, 1 DI, 1 DO, 4 (M12) POE, Power: 3pin 3W3 connector
VC500-CMS-10G-Q | 750-VC50000-100G | Q470E, 8 USB 3.1, 1 DI, 1 DO, 2 10GLAN, Power: 3pin 3W3 connector
VC500-CMS-POE-Q | 750-VC50000-210G | Q470E, 8 USB 3.1, 1 DI, 1 DO, 4 (RJ45) POE, Power: 3pin 3W3 connector
VC500-CMS-H | 750-VC50000-310G | H420E, 6 USB 3.1, Power: 3 pin terminal block
VC500-CMS-10G-W-X127 | 750-VC50000-600G | Xeon-1270TE, W480E, 8 USB 3.1, 1 DI, 1 DO, 2 10GLAN, Power: 3 pin terminal block
VC500-CMS-Q | 750-VC50000-700G | Q470E, 8 USB 3.1, 1 DI, 1 DO, Power: 3 pin terminal block

Optional Items
2.5" SSD, M.2 SATA SSD, Memory, WiFi/BT module kit, LTE module kit, 5G module kit, M12 Cable, CAN bus module, Power Switch Cable, Power Adapter

Characteristics / Technical Specifications

• Fanless in-vehicle system
• 10th Gen Intel® Xeon/Core™/Pentium/Celeron support
• DDR4 up to 64GB
• Multiple PoE/10G SFP+ options
• Wide temperature and voltage support
• Multiple expansion slots (miniPCIe, M.2)
• Triple independent display
• Comprehensive certifications (RoHS, CE, FCC, UKCA, E-Mark)
• Long lifecycle support
