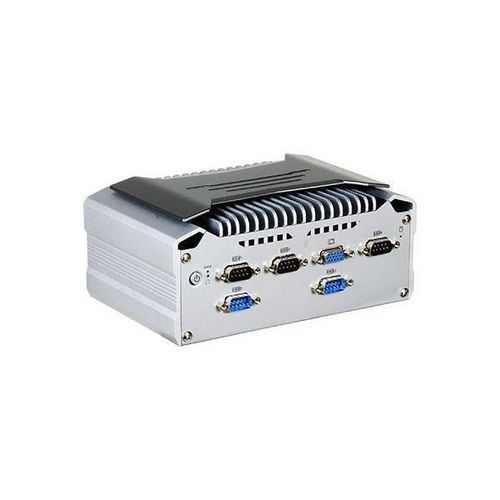

Box computer VC70B-KU

wall-mountedDIN railVESA mounting

Product Details

• Compact and Fanless In-Vehicle System
• 4GB/8GB DDR4 memory onboard
• 1x 2.5" SATA 3.0 Drive Bay
• Supports 2 Mini PCIe for Extension Modules
• Rich I/O ports: 2 Intel GbE, 6 COM, 4 USB 3.0, 2 USB 2.0
• 15-Year CPU Life Cycle Support Until Q1' 32 (Based on Intel IOTG Roadmap)

Features

• Wide-temp: -20~60°C
• Wide Voltage: 9~36V DC-in
• Fanless Design
• 4K2K Display
• DDR4

Certifications

• RoHS Certification
• CE Certification
• FCC Certification
• E-Mark (E13) Certification

System Specifications

• Processor: 7th Generation Intel® Core™ Processors, FCBGA 1356; Intel® Core™ i7-7600U Processor, Dual Core, 4M Cache, 2.8GHz, 15W; Intel® Core™ i5-7300U Processor, Dual Core, 3M Cache, 2.6GHz, 15W; Intel® Core™ i3-7100U Processor, Dual Core, 3M Cache, 2.4GHz, 15W
• Memory: 4GB/8GB Memory Onboard, Dual Channel DDR4 2133MHz
• BIOS: Insyde SPI 128Mbit

Graphics

• Controller: Intel® HD Graphics GT Series
• Display: 1 x VGA, 1 x HDMI; VGA: resolution up to 1920x1200 @ 60Hz; HDMI: resolution up to 4096x2160 @ 24Hz
• Dual Displays: VGA + HDMI

Storage

• 1 x 2.5" SATA 3.0 Drive Bay

Expansion

• 1 x Full-size Mini PCIe (PCIe+USB)
• 1 x Half-size Mini PCIe (PCIe+USB+SATA)

Audio

• Realtek ALC888 5.1-channel

Ethernet

• 1 x Intel® I210IT (10/100/1000Mbps)
• 1 x Intel® I219LM (10/100/1000Mbps)

LED Indicators

• 1 x Status LED
• 1 x HDD LED

Front I/O

• 2 x RS-232/422/485 (DB-9, COM 1~2)
• 3 x RS-232 (DB-9, COM 4~6, COM 4 supports 8-bit DIO or CAN-Bus )
• 1 x VGA
• 1 x Power Button
• 1 x Reset Button

Rear I/O

• 2 x GbE (RJ-45)
• 1 x RS-232 (DB-9, COM 3)
• 4 x USB 3.0 (type A)
• 2 x USB 2.0 (type A)
• 1 x HDMI
• 1 x Line-out
• 1 x Mic-in
• 5 x Wi-Fi Module Antenna Hole

Watchdog Timer

• System Reset, Programmable via Software from 1 to 255 Seconds

Power

• 9~36V DC-in power with ignition delay on/off
• DC Jack

OS Support

• Windows 10 (64-bit)
• Windows 10 IoT Enterprise (64-bit)
• Linux

Environment

• Operating Temperature: -20 to 60°C
• Storage Temperature: -20 to 85°C
• Relative Humidity: 5 to 95% RH (non-condensing)

Mechanism

• Construction: Aluminum + Sheet Metal
• Mounting: Wall/VESA/DIN Rail Mount
• Dimensions (W x H x D): 184mm x 82mm x 118.4mm
• Weight: 1.6 Kg

Standards and Certifications

• Shock: MIL-STD 810G 516.6; Operating: 10G, 11ms; Non-Operating: 40G, 11ms
• Vibration: MIL-STD 810G 514.6C-3
• Certifications: CE, FCC Class A, RoHS, E-Mark (E13)

Packing List

• 1 VC70B-KU system unit
• 4 Mounting screws for Mini PCIe module: 531-510180-000G
• 1 Power Connector: 342-360030-110G

Country of Origin

• Taiwan

Ordering Information
Model Name | Part Number | Description
VC70B-KU6862-714 | 750-VC70B0-000G | Intel Core i3-7100U, 1 HDMI, 1 VGA, 2 LAN, 6 COM, 6 USB, 4GB DDR4 onboard
VC70B-KU6862-738 | 750-VC70B0-100G | Intel Core i5-7300U, 1 HDMI, 1 VGA, 2 LAN, 6 COM, 6 USB, 8GB DDR4 onboard
VC70B-KU6862-768 | 750-VC70B0-200G | Intel Core i7-7600U, 1 HDMI, 1 VGA, 2 LAN, 6 COM, 6 USB, 8GB DDR4 onboard

Optional Items
SSD: 2.5" SATA SSD, 1TB/512G/256G/128G/64G MLC, RoHS
mSATA: mSATA Card, 128GB/64GB/32GB MLC, RoHS
Wi-Fi Kit, 3G + GPS Kit, Power Adapter (120W, 24V/5A for test/validation only), Wall Mount Kit, VESA Mount Kit, DIN Rail Mount Kit

Technical Specifications (Summary)

• 7th Gen Intel® Core™ (i7-7600U/i5-7300U/i3-7100U)
• DDR4 2133MHz, 4GB/8GB onboard
• 2 Mini PCIe (Full/Half-size)
• 1 VGA, 1 HDMI (up to 4K2K)
• 2 Intel GbE LAN
• 6 COM, 4 USB 3.0, 2 USB 2.0
• Fanless, Compact, Wide-temp (-20~60°C), Wide Voltage (9~36V DC-in)
• Certifications: CE, FCC, RoHS, E-Mark (E13)
