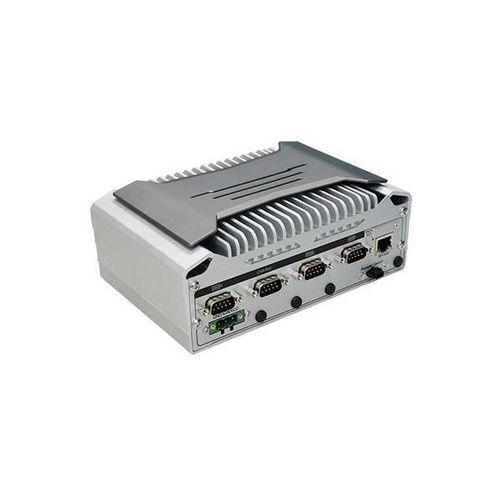

Box computer VC70B-MTH

wall-mountedin-vehicleIntel® Core™ Ultra 7 165H

Product Overview

• Ultra-compact, stylish, and AI-powered in-vehicle system for smart mobility
• Intel® Core™ Ultra processor with LPDDR5-6400 soldered memory
• Remote Management: Supports Out of band control
• Build-in 9 axis sensor for driver detection within fleet management
• Triple Displays: 1 HDMI, 1 DP, 1 USB-C DP Alt. mode
• Multiple Expansion: 1 M.2 M Key, 1 M.2 B Key, 1 M.2 E Key
• Rich I/O: 2 2.5GbE, 1 GbE, 5 USB 3.2, 1 USB-C, 2 USB 2.0, 3 COM, 2 CAN FD

Features

• Wide-temp: -20~70°C
• Wide Voltage: 9~36V DC-in
• Multiple Expansion
• Triple Independent Display
• Rich I/O
• Out-of-band (OOB)

Certifications

• RoHS Certification
• CE Certification
• FCC Certification
• UKCA Certification
• E-Mark (E24) Certification

Technical Specifications
System
Processor: Intel® Core™ Ultra 7 165H, 16C, 24M Cache, 1.4GHz~5.0GHz, 28W
Intel® Core™ Ultra 7 155U, 12C, 12M Cache, 1.7GHz~4.8GHz, 15W
Intel® Core™ Ultra 5 125U, 12C, 12M Cache, 1.3GHz~4.3GHz, 15W
Memory: Dual Channel LPDDR5/x 6400MHz memory down Up to 32GB (64GB per request)
BIOS: AMI SPI 256Mbit

Graphics
Controller: Intel® Arc™ Graphics
Feature: OpenGL 4.6, Direct X 12.2, OpenCL 3.0
HW Decode: HEVC, VP9, AV1, AVC
HW Encode: HEVC, VP9, AV1, AVC
Display: 1 x HDMI 1.4b, 1 x DP++, 1 x USB-C DP Alt. mode
HDMI: resolution up to 4096x2160@24Hz
DP++: resolution up to 4096x2160@24Hz
USB-C DP: resolution up to 4096x2304@60Hz
Triple Displays: HDMI + DP + USB-C DP Alt. mode

Expansion
Interface: 1 x M.2 M key 2280 (PCIe Gen4 x4), 1 x M.2 B key 3052 (USB 3.0/2.0, PCIe x1, SATA), 1 x SIM slot for 4G/5G, 1 x M.2 E key 2230 (USB 2.0/PCIe x1)

Ethernet
Controller: 2 x Intel® I226IT (10/100/1000/2500Mbps)

LED
Indicators: 1 x Power LED, 1 x HDD LED

Front I/O
Ethernet: 2 x 2.5GbE @ RJ45 connectors
USB: 5 x USB 3.2 Type A, 1 x USB Type C, 2 x USB 2.0 Type A
Display: 1 x HDMI, 1 x USB-C DP Alt. Mode, 1 x DP++
SIM: 1 x Nano SIM slot

Rear I/O
Ethernet: 1 x GbE (RJ-45), Intel® i210IT (10/100/1000Mbps) (support OOB)
Serial: COM 1: RS-232/422/485, COM 2: RS-232, COM 4: RS-232/422/485 or 8-bit DIO by jumper setting
CANBus: 2 x CAN FD (DB9-M)
GMSL2: 1 x Micro SD slot for OOB

Watchdog Timer
Output & Interval: System Reset, Programmable via Software from 1 to 255 Seconds

Security
TPM: TPM 2.0

Power
Type: 9~36V DC
Connector: 3-pin terminal block (VCC/ACC/GND)
RTC Battery: CR2032 Coin Cell (Cable type)
Power Management: 1. Ignition On/Off control, 2. System On delay time, 3. OS Protection Time, 4. System Off delay time, 5. Car Battery Voltage Monitoring, 6. Battery Low Voltage Protect

OS Support
Microsoft: Windows 11 & 10 IoT Enterprise 64-bit
Linux: Linux

Environment
Temperature: Operating: -20 to 70°C fanless, Operating: -20 to 50°C fanless (28W CPU only), Storage: -40 to 85°C
Humidity: Operating: 5 to 95% RH, Storage: 5 to 95% RH

Mechanism
Dimensions: 181.6mm (W) x 71.5mm (H) x 118.4mm (D)
Mounting: Wall mount
Weight: < 3KG

Standards and Certifications
Shock: Operating/non-operating: MIL-STD-810G Method 516.6, Procedure 1
Vibration: Operating/non-operating: MIL-STD-810G Method 514.6, Category 4
Certifications: CE, FCC Class B, E-Mark (E24), RoHS, UKCA

Country of Origin
Taiwan

Tags

• Windows 10
• 9~36V DC-in
• USB Type-C DP
• M.2
• E-Mark (E24) Certification
• Out-Of-Band (OOB)
• Intel® Core™ Ultra processors
• IoT
• Windows 11
• Intel
• SIM Slot
• Compact PC
• Compact Size
• 4K2K Display
• 1G Ethernet
• Windows
• Linux
• DP
• Multiple Expansion
• RoHS Certification
• CE Certification
• FCC Certification
• In-Vehicle
• High-Performance
• 2.5G Ethernet
• UKCA Certification

Key Technical Specifications

• Model: VC70B-MTH
• Processor: Intel® Core™ Ultra 7 165H/155U, Ultra 5 125U
• Memory: Up to 32GB LPDDR5/x (64GB per request)
• Triple Display: HDMI, DP++, USB-C DP Alt. mode
• Expansion: 1 x M.2 M key, 1 x M.2 B key, 1 x M.2 E key, 1 x SIM slot
• Ethernet: 2 x 2.5GbE, 1 x GbE
• USB: 5 x USB 3.2, 1 x USB-C, 2 x USB 2.0
• Serial: 3 COM, 2 CAN FD
• Operating Temp: -20 to 70°C
• Certifications: CE, FCC, E-Mark (E24), RoHS, UKCA
