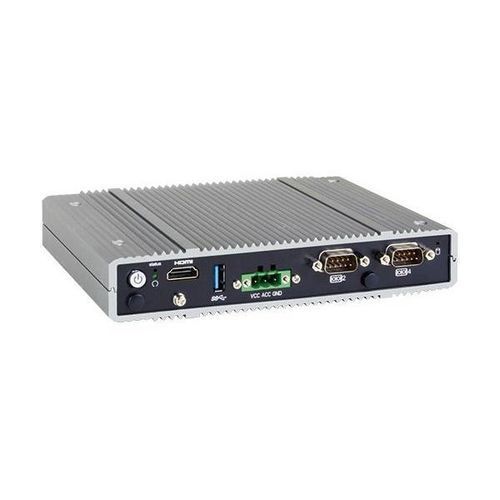

Box computer VC230-BT

mobilewall-mountedDIN rail

Product Overview

• Anti-vibration and fanless In-Vehicle computer
• Supports ignition delay on/off function
• 1 mSATA, eMMC (optional), microSD (optional)
• Supports Wi-Fi, 3G, and GPRS application
• 15-Year CPU Life Cycle Support Until Q4' 28 (Based on Intel IOTG Roadmap)

Features

• Wide-temp: -20~60°C
• Wide Voltage: 9~36V DC-in
• Fanless Design
• ECC Memory
• DDR3L

Certifications

• RoHS Certification
• CE Certification
• FCC Certification
• E-Mark (E13) Certification

Product Details

• All-inclusive Vehicle System: Fanless, built on Intel Atom® E3800 series processors, rich I/O, excellent heat dissipation, shock resistance, reliable in extreme environments.
• Real-time Data Synchronization: Multiple Mini PCIe slots supporting 3G/4G, Wi-Fi, Bluetooth, GPS, CAN bus; suitable for mobile telematics, fleet management, navigation, and sensor integration.
• Around-the-clock Reliability: Operates reliably from -20°C to 60°C for in-vehicle applications in harsh conditions.
• An Abundance of I/O: 2 GbE ports, 1 VGA, 1 HDMI, 5 USB, 3 COM/DIO ports for diverse IoV applications.
• Voltage Surge Protection: Wide-voltage input (9~36V DC), in-vehicle power management with delay power-on/off for safety.
• Certified Shock Protection: E13 and MIL-STD-810G certified for shock protection, robust for smart/connected vehicles.

Technical Specifications

• System
  • Processor: Intel Atom® Processor E3800 Series, BGA 1170; E3845 (Quad Core, 2M Cache, 1.91GHz, 10W), E3825 (Dual Core, 1M Cache, 1.33GHz, 6W)
  • Memory: 4GB/2GB ECC Memory Onboard; Single Channel DDR3L 1333MHz (-E45), 1066MHz (-E25)
  • BIOS: AMI SPI 64Mbit
• Graphics
  • Controller: Intel® HD Graphics
  • Display: 1 x VGA, 1 x HDMI; HDMI up to 1920x1080 @ 60Hz, VGA up to 2560x1600 @ 60Hz
  • Dual Displays: VGA + HDMI
• Storage
  • 4GB/8GB/16GB/32GB eMMC Onboard (available upon request)
• Expansion
  • 1 x Full-size Mini PCIe (PCIe/USB/3G/GPRS/CAN-Bus)
  • 1 x Full-size Mini PCIe (SATA)
  • 1 x Half-size Mini PCIe (PCIe/USB/LPC)
  • 1 x SIM
  • 1 x microSD (available upon request)
• Ethernet
  • 2 x Intel® I210AT PCIe (10/100/1000Mbps)
• LED
  • 1 x Status LED
  • 1 x HDD LED
• Front I/O
  • 2 x RS-232/422/485 (DB-9) (one supports 8-bit DIO or CAN-Bus)
  • 1 x USB 3.0 (type A)
  • 1 x HDMI
  • 1 x Power Button
  • 1 x Reset Button
  • 2 x Wi-Fi Module Antenna Hole
• Rear I/O
  • 2 x GbE (RJ-45)
  • 1 x RS-232/422/485 (DB-9)
  • 4 x USB 2.0 (type A)
  • 1 x VGA
  • 1 x Line-out (available upon request)
  • 1 x Wi-Fi Module Antenna Hole
• Watchdog Timer
  • System Reset, Programmable via Software from 1 to 255 Seconds
• Power
  • Wide Range 9~36V
  • In-Vehicle Power Management Includes Ignition On/Off and System On/Off Delay Time Control
  • 3-pin Terminal Block (VCC/IGN/GND)
• OS Support
  • Windows 7, WES 7, Windows 8, WES 8, Windows 8.1, Linux (Distribution available upon request), Windows 10 (available upon request)
• Environment
  • Operating Temperature: -20 to 60°C
  • Storage Temperature: -40 to 85°C
• Mechanism
  • Construction: Aluminum + Metal Aluminum
  • Mounting: Wall/VESA/DIN Rail Mount (available upon request)
  • Dimensions: 180mm x 33mm x 121.2mm (W x H x D)
  • Weight: 800g
• Standards and Certifications
  • Shock: Half Sine Wave 15G, 11ms, 3 Shock Per Axis
  • Vibration: MIL-STD 810G 514.5C-II
  • Certifications: CE, FCC Class A, RoHS, E-Mark (E13)
• Country of Origin
  • Taiwan

Ordering Information
Model Name: VC230-BT3051-252, Part Number: 750-EC7000-E00G, Description: Fanless, Intel Atom E3825, 2 LAN, 1 HDMI, 1 VGA, 3 COM, 5 USB, 2GB DDR3L memory down, RoHS
Model Name: VC230-BT3051-454, Part Number: 750-EC7000-F00G, Description: Fanless, Intel Atom E3845, 2 LAN, 1 HDMI, 1 VGA, 3 COM, 5 USB, 4GB DDR3L memory down, RoHS

Optional Items

• 64GB/32GB/16GB/8GB mSATA Cards
• Wi-Fi kit
• Power Cord (USA/EUR/CH)
• 60W Power Adapter (12V/5A or 19V/3.15A)
• Wall Mount Kit
• VESA Mount Kit
• Switch Cable (Power adaptor cable with ignition switch)
