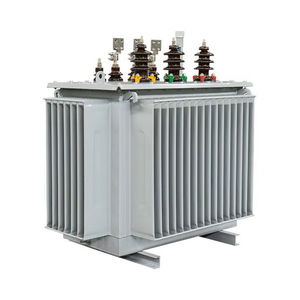

Distribution transformer SDT-23electrical power supplyimmersedindustrial
Add to favorites
Compare this product
Characteristics
- Type
- distribution, electrical power supply
- Configuration
- immersed
- Applications
- industrial, for industrial applications, for indoor service, for electrical networks, substation, for mining equipment, for inverters, for data centers
- Electrical characteristics
- three-phase, medium-voltage
- Mounting
- floor-standing, pad-mount, pole-mounted, surface-mount
- Norms
- IEC, UL, ANSI, TUV
- Other characteristics
- primary, compact, with copper windings, low-loss, oil-filled, hermetically-sealed, K-factor, three-winding, two-winding, containerized
- Output power kVA
Max.: 1,600 kVA
(2,175.393848 hp)Min.: 30 kVA
(40.788635 hp)- Primary voltage
23 kV
- Secondary voltage
0.4 kV
Description
• IEC 60076, ANSI/IEEE Std C57.12, NEMA
• ISO 9001, KEMA, CESI, CE, TUV, UL, ASTA
• Mineral Oil / Vegetable Oil (FR3), Free PCB
• Low loss, Low partial discharge, Low temperature rise
• Seismic design, ETGI-1.020, IEEE Std 693, NCh2369
• Structural design, ASTM A325, ANSI/AISC 360, AWS D1.1
• High altitude correction per IEC 60076 & IEEE C57.12, ~ 5000m
