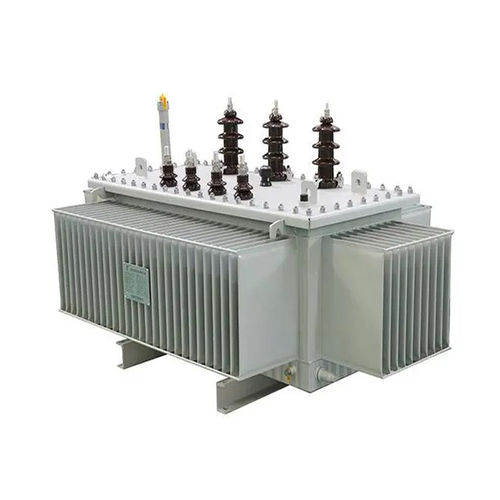

Distribution transformer SDT-A-12electrical power supplyimmersedindustrial
Add to favorites
Compare this product
Characteristics
- Type
- distribution, electrical power supply
- Configuration
- immersed
- Applications
- industrial, for industrial applications, for electrical networks, substation, for outdoor service, for mining equipment, for lighting, for inverters, for data centers, emergency power supply
- Electrical characteristics
- three-phase, medium-voltage
- Mounting
- floor-standing, through-hole, pad-mount, pole-mounted, surface-mount, trolley-mounted
- Norms
- IEC, UL, ANSI, TUV
- Other characteristics
- with copper windings, primary, compact, laminated, low-loss, energy-saving, oil-immersed, oil-filled amorphous metal, hermetically-sealed, K-factor, amorphous core, with harmonic cancellation, two-winding
- Output power kVA
Max.: 1,600 kVA
(2,175.393848 hp)Min.: 30 kVA
(40.788635 hp)- Primary voltage
12 kV
- Secondary voltage
0.4 kV
Description
• IEC 60076, ANSI/IEEE Std C57.12, NEMA
• ISO 9001, KEMA, CESI, CE, TUV, UL, ASTA
• Mineral Oil / Vegetable Oil (FR3), Free PCB
• High magnetic susceptibility, Low coercivity
• Low loss and Low magnetizing current, Higher stability
• Seismic design, ETGI-1.020, IEEE Std 693, NCh2369
• Structural design, ASTM A325, ANSI/AISC 360, AWS D1.1
• High altitude correction per IEC 60076 & IEEE C57.12, ~ 5000m
