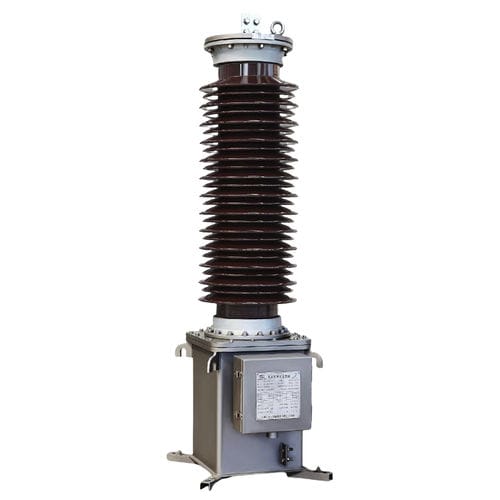

Instrument transformer TYD145measurementimmersedfor industrial use
Add to favorites
Compare this product
Characteristics
- Type
- instrument, measurement
- Configuration
- immersed
- Applications
- for industrial use, for electrical networks, protection, for energy meters, substation
- Electrical characteristics
- single-phase, high-voltage, capacitor voltage
- Mounting
- floor-standing
- Norms
- IEC, UL, ANSI, TUV
- Other characteristics
- protection, control, high-accuracy, oil-immersed, coupling, multi-winding
- Primary voltage
145 kV
- Secondary voltage
Max.: 220 V
Min.: 110 V
- Frequency
50 Hz, 60 Hz
Description
• IEC 61869, ANSI/IEEE C93.1, NEMA
• ISO 9001, KEMA, CESI, CE, TUV, UL, ASTA
• Seismic design, ETGI-1.020, IEEE Std 693, NCh2369
• Structural design, ASTM A325, ANSI/AISC 360, AWS D1.1
• High altitude correction per IEC 61869 & IEEE C93.1, ~ 5000m
• High Quality Paper-Oil Insulation, Mineral oil (No PCB), Hermetically Sealed
• Accuracy classes 0.1, 0.2, 0.5, 1.0, 3.0, 3P, 6P or 0.15, 0.3, 0.6, 1.2 (IEEE)
• Robust and Reliable damping circuit reduces risk of damage
• Operation as coupling capacitor for power line transmission
