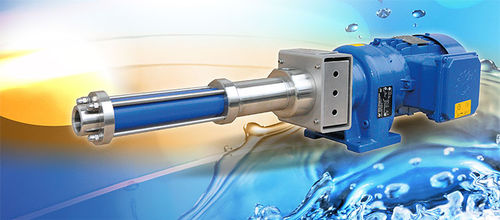

Progressive cavity pump JP series
for chemicalsfor food productsoil

Progressive cavity pump - JP series - Dr. Jessberger GmbH - for chemicals / for food products / oil
Progressive cavity pump - JP series - Dr. Jessberger GmbH - for chemicals / for food products / oil
Add to favorites
Compare this product

Characteristics

Technology
progressive cavity
Fluid
for chemicals, for food products, oil
Operation
with electric motor
Mobility
stationary
Domain
industrial, for the chemical industry, for the food industry, for pharmaceutical applications, for the cosmetics industry
Applications
discharge, dosing, for control, transport, suction
Material
stainless steel, PTFE, EPDM
Voltage
400 V, 380 V
Protection level
ATEX, standard
Other characteristics
mechanical, small, adjustable, single-acting, seal
Flow

Max.: 1,200 l/h
(317.00646 us gal/h)

Min.: 0.6 l/h
(0.1585 us gal/h)

Pressure

6 bar, 12 bar, 18 bar, 24 bar
(87.023 psi, 174.045 psi, 261.068 psi, 348.091 psi)

Power

Max.: 1.1 kW
(1.5 hp)

Min.: 0.37 kW
(0.5 hp)

Description

for thin fluid to high viscous media Type JP-7032 up to JP-7120.2. Almost pulsation free transport and small quantity dosing of thin to high viscous, thixotropic, gaseous, solids and fibres containing, aggressive and neutral media in nearly all industries. High dosing precision Flow rate adjustable by the speed of the motor Stainless steel execution SS 316Ti Pump and motor directly coupled Space-saving design Thread connections on suction side G 1” and G ½” on discharge side G 1” Totally enclosed pin joints Rotor SS 316Ti Stator material adapted to the pumped medium (NBR, NBR light, FKM and EPDM, EPDM light; PTFE is only available at types JP-7115.1 and JP-7115.2) Shaft seal by single-acting mechanical seal or stuffing box The JESSBERGER high viscosity dosing pumps are supplied as standard with either a for operation with frequency inverter drive suitable gear motor or with an adjustable manually control gear motor. The pumps currently do not yet have ATEX approval and should therefore not be used for pumping flammable media.
