Water pump MCS

oilelectricsubmersible

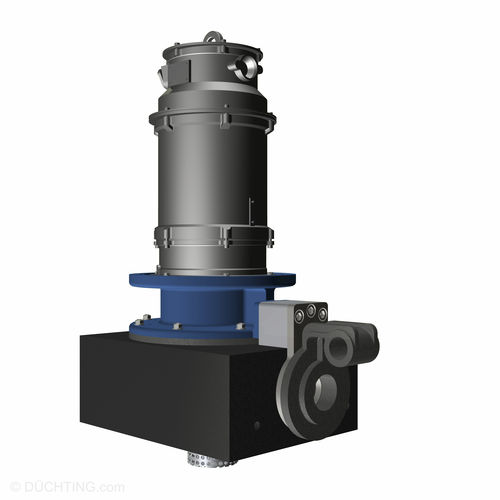

TYPE MCS Submersible single stage centrifugal pump. Pumping of abrasive and corrosive liquids All hydraulic components which are in contact with the liquid are made of SICcast Suction flange: Vertical (including suction strainer) Discharge flange: Radial Closed impeller with three-dimensionally curved vanes Single acting mechanical seal Moisture sensor in an oil reservoir between pump and motor Stainless steel submersible three-phase motor (IP68) Optimized design ensures easy maintenance and long service life even under difficult conditions Technical Data Pump Size: - 1 1/4″ to 6″ max. Pressure: - 150 PSI max. Flow: - 1400 gpm Total head: - up to 295 ft Rotating speed: - to 3600 rpm Fields of Application Handling of abrassive and corrosive liquids. Flue gas desulfurization Incinerators Water treatment Seawater desalination plants Fertilizer industry / Potash industry Materials Volute casing: - SICcast® Impeller: - SICcast® Shaft: - 1.4462 Mechanical seal: - Siliziumkarbid (SIC)
