Steady beacon B350TLA

multifunctionblinkingstrobe

Product overview

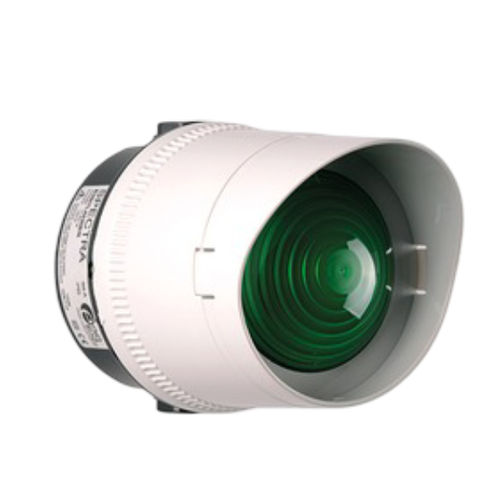

The B350TLA is a compact LED traffic warning beacon providing high output steady and selectable flash modes. Its small footprint and surface-mount design make it suitable for space-constrained industrial installations and direct machine mounting.

Description
Multiple B350TLA units can be stacked using the supplied connector and integrated with the B300SND horn for a combined audio-visual signalling solution. Individual or stacked units can be positioned using the optional steel wall bracket. In addition to a high-power steady light mode, the B350TLA offers seven flash patterns including a temporal flash for high visibility.

Features

• Bayonet-fixing lens
• Anti-tamper locking fastener
• Stainless steel fixings
• Removable and rotatable shade
• Configurable as a signalling stack
• High-power steady light output
• Multiple flash patterns including temporal

Specifications
Light source: High output L.E.D.
Light output: 18 x Cree© SMT White L.E.D. array
Functions: High power steady; Blinking – 425ms ON 75ms OFF; 1.0Hz (60 fpm) – 200ms ON 800ms OFF; 1.33Hz (80 fpm) – 150ms ON 600ms OFF; Double Flash; Triple Flash; 2.0Hz (120 fpm) – 125ms ON 375ms OFF; Temporal Flash
Lens colours: Amber, Blue, Green, Red, Clear, Yellow
High power steady candela: 211 cd (ref. I.E.S.)
1Hz flash candela: 133 cd (ref. I.E.S.)
LED life: 60,000 hours
Terminals: Duplicated pluggable
Cable size: 0.5 to 2.5 mm² (20-14 AWG)
Lens type: Prismatic / diffused
Mounting: Surface mount (steel wall bracket optional)
Entries: 1 × 5–7 mm IP67 push-through grommet; 2 × 20 mm clearance entries
Dimensions: ø100 x 140 mm
Ingress protection: IP65
Housing material: High impact PC, UL94 V0 (f1)
Operating temperature: -40 to +70°C [-40° to +158°F]
Storage temperature: -40 to +70°C [-40° to +158°F]
Relative humidity: 95% at 20°C [68°F]
Weight: 0.243 kg / 0.54 lbs

Current consumption (selected values)
Range 16–33Vdc / 10–14Vdc (ident. 030): Steady Mode 180 mA (24 Vdc); 1Hz Flash 88 mA (24 Vdc); Max Current 190 mA (33 Vdc)
Range 48–260Vac / 48–260Vdc (ident. 230): Steady Mode 90 mA (115 Vac) / 55 mA (230 Vac) / 156 mA (48 Vdc); 1Hz Flash 35 mA (115 Vac) / 18 mA (230 Vac); Max Current 51 mA (260 Vac)

Part codes & accessories

• Model: B350TLA
• Product type: LED Traffic Light Warning Beacon
• Voltage options: 16–33Vdc & 10–14Vdc (030); 48–260Vac 50/60Hz or 48–260Vdc (230)
• Lens colours: Amber, Blue, Clear, Green, Red, Yellow
• Stackable: Yes (connector supplied)
• Optional accessories: Steel wall bracket; MB-B350T-S (single), MB-B350T-M (multiple)
• Approvals: EAC, CE, UKCA (as applicable)

Technical data (summary)

• Dimensions: ø100 x 140 mm
• Ingress protection: IP65
• LED life: 60,000 hours
• Operating temperature: -40 to +70°C
• Weight: 0.243 kg
• Material: Polycarbonate high impact UL94 V0
