video corpo

strobe beacon / xenon / 115VAC / 24VDC
BExBG05, BExBG10, BExBG15

{{requestButtons}}

Characteristics

  • Type:

    strobe

  • Technology:

    xenon

  • Voltage level:

    115VAC, 24VDC, 12VDC, 48VDC

  • Other characteristics:

    explosion-proof

Description

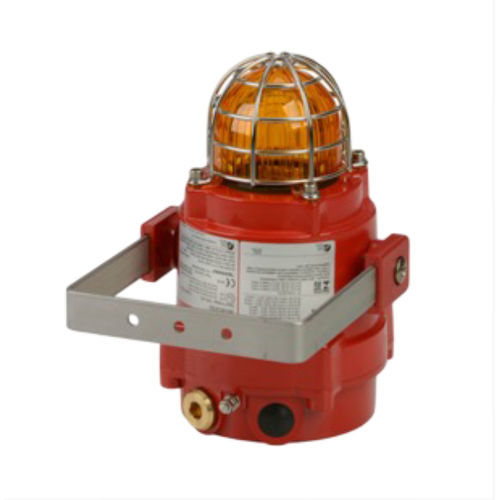

BExBG05 Xenon Beacon 5 Joule

The flameproof BExBG05 Xenon beacons are suitable for Zone 1, 2, 21 & 22 applications.


The BExBG05 5 Joule beacons are ideal for general signalling duties whilst their robust construction makes installation in the harshest of environments possible. Additional features include automatic synchronisation on multi-beacon systems and stainless steel guard and mounting bracket as standard.
The BEx range features enclosures manufactured from corrosion proof, marine grade copper free LM6 aluminium which is phosphated and powder coated. All models have two M20 cable entries, large termination areas containing in & out terminals (Ex de version only) and an ingress protection of IP66/67 (Ex d) and IP66 (Ex de).

Features:
Automatic synchronisation on multi-beacon system.
Beacons can be set to ip-op alternating mode
with other units on multi-beacon systems.
Xenon tubes mechanically secured against
shock & vibration
Glass lens & Stainless Steel guard
Very large termination area.
Ratchet adjustable stainless steel U bracket.
IN & OUT terminals (Ex de version only).

Approvals:
ATEX certicate: KEMA 00ATEX2006,
EN 60079-0 : 2006, EN 60079-1 : 2007,
EN 60079-7 : 2003, EN 61241-0 : 2006,
EN 61241-1 : 2004

IECEx certicate: IECEx KEM 10.0002,
IEC 60079-0 : 2004 (Ed4), IEC 60079-1 : 2007 (Ed6),
IEC 60079-7 : 2001 (Ed3), IEC 61241-0 : 2004 (Ed1),
IEC 61241-1 : 2004 (Ed1)

GOST-R certicate: POCC GB.JB05. B03365

Inmetro certicate: 10-IEx-0010
