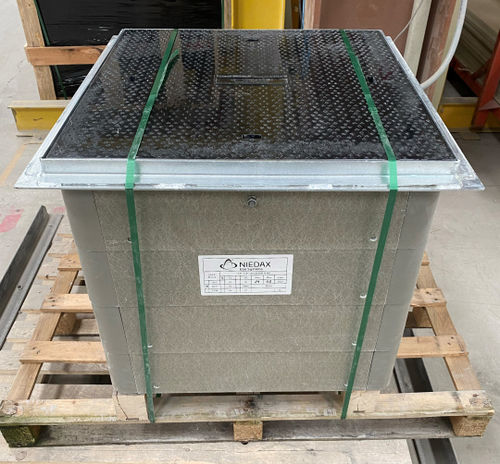

Underground junction box CT S1 series

steelGRPfor cables

Description
Modular cable junction box with interlocking GRP crowns, steel frame and GRP lid. Usable area: 500×500 mm. Standard height 600 mm (customisable). Available load capacities: 1.5, 12.5 and 25.0 tons.

Dimensions
Inner length | Inner width | Outer length | Outer width
500 mm | 500 mm | 600 mm | 600 mm

Material and colour
Material: GRP (Glass-fibre Reinforced Polyester)
Colour: Concrete grey
RAL: 7023

Resistances available

• CT S1 A15 — Resistance: 1.5 tons — EAN: –
• CT S1 B125 — Resistance: 12.5 tons — EAN: –
• CT S1 C250 — Resistance: 25.0 tons — EAN: –

Characteristics / technical specifications

• Model: CT S1
• Construction: GRP junction box with interlocking crowns
• Frame: Steel frame
• Lid: GRP lid
• Usable area: 500 x 500 mm
• Standard height: 600 mm (customisable)
• Inner dimensions: 500 mm (length) x 500 mm (width)
• Outer dimensions: 600 mm (length) x 600 mm (width)
• Material details: GRP (Glass-fibre Reinforced Polyester)
• Colour / Finish: Concrete grey (RAL 7023)
• Available load capacities: 1.5 t (A15), 12.5 t (B125), 25.0 t (C250)
