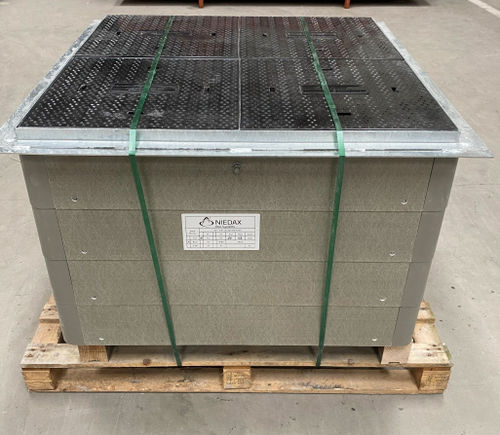

Underground junction box CT S2 series

steelGRPfor cables

Description
Cable junction box with interlocking crowns in GRP, steel frame (G.A.C.) and GRP lids. Usable area 800 x 800 mm. Standard height 600 mm (custom heights available). Available load classes: 1.5 t (A15), 12.5 t (B125) and 25.0 t (C250).

Dimensions
Inner length | Inner width | Outer length | Outer width
800 mm | 800 mm | 900 mm | 900 mm

Material & Finish
Material: GRP (Glass-fibre Reinforced Polyester)
Color: Concrete grey
RAL: 7023

Available resistances / Product variants

• CT S2 A15 — 1.5 tons
• CT S2 B125 — 12.5 tons
• CT S2 C250 — 25.0 tons

Technical specifications

• Product type: Cable junction box (KVK / CT S2)
• Usable area: 800 x 800 mm
• Standard height: 600 mm (custom dimensions available)
• Inner dimensions: 800 mm (length) x 800 mm (width)
• Outer dimensions: 900 mm (length) x 900 mm (width)
• Material: GRP (Glass-fibre Reinforced Polyester)
• Frame: Steel frame (G.A.C.)
• Lids: GRP lids
• Top design: Interlocking crowns in GRP
• Color / Finish: Concrete grey, RAL 7023
• Available load classes: A15 (1.5 t), B125 (12.5 t), C250 (25.0 t)
• Product variants: CT S2 A15, CT S2 B125, CT S2 C250
