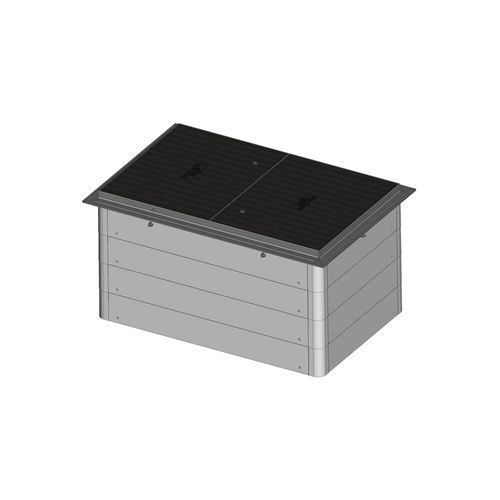

Built-in junction box CT S6 series
GRPfor cables

Built-in junction box - CT S6 series - Ebo Systems SAS - GRP / for cables
Built-in junction box - CT S6 series - Ebo Systems SAS - GRP / for cables
Built-in junction box - CT S6 series - Ebo Systems SAS - GRP / for cables - image - 2
Built-in junction box - CT S6 series - Ebo Systems SAS - GRP / for cables - image - 3
Built-in junction box - CT S6 series - Ebo Systems SAS - GRP / for cables - image - 4
Add to favorites
Compare this product
Go to the Ebo Systems SAS website for more information

Characteristics

Mounting
built-in
Material
GRP
Applications
for cables
Length / diameter

Max.: 1,100 mm
(43.3 in)

Min.: 1,000 mm
(39.4 in)

Width

Max.: 700 mm
(27.56 in)

Min.: 600 mm
(23.62 in)

Depth

600 mm
(23.62 in)

Description

Description
Cable junction box with interlocking GRP crowns (rings), steel G.A.C. frame and GRP lids. Usable area: 1000 × 600 mm; standard height 600 mm (customizable). Available load resistances: 1.5, 12.5 and 25.0 tons.

Dimensions
Inner length | Inner width | Outer length | Outer width
1000 mm | 600 mm | 1100 mm | 700 mm

Resistances & product variants
  • CT S6 Bis A15 — 1.5 tons
  • CT S6 Bis B125 — 12.5 tons
  • CT S6 Bis C250 — 25.0 tons


Materials and appearance
  • Material: GRP (Glass-fibre Reinforced Polyester)
  • Color: Concrete grey
  • RAL: 7023


Characteristics / technical specifications
  • Usable area: 1000 × 600 mm
  • Standard internal dimensions: 1000 mm (length) × 600 mm (width)
  • Standard external dimensions: 1100 mm (length) × 700 mm (width)
  • Standard height: 600 mm (customizable)
  • Load resistances available: 1.5 t (A15), 12.5 t (B125), 25.0 t (C250)
  • Construction: GRP crowns with steel G.A.C. frame and GRP lids
  • Color / RAL: Concrete grey / RAL 7023
  • Available variants: CT S6 Bis A15, CT S6 Bis B125, CT S6 Bis C250
