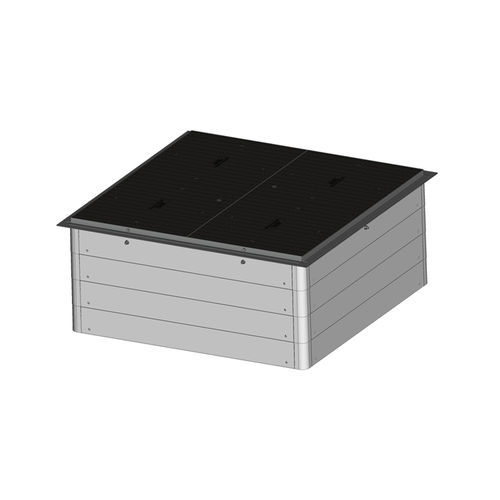

Underground junction box CT S3 seriessteelGRPfor cables
Add to favorites
Compare this product
Characteristics
- Mounting
- underground
- Material
- steel, GRP
- Applications
- for cables
- Length / diameter
Min.: 1,200 mm
(47.2 in)Max.: 1,300 mm
(51.2 in)- Width
Min.: 1,200 mm
(47.24 in)Max.: 1,300 mm
(51.18 in)- Depth
600 mm
(23.62 in)
Description
Product description
Cable junction box with interlocking crowns in GRP, steel G.A.C. frame, GRP lids. Usable area 1200×1200 mm; outer dimensions 1300×1300 mm. Standard height 600 mm (customizable). Available load classes: A15 (1.5 t), B125 (12.5 t), C250 (25.0 t).
Dimensions
Inner length | Inner width | Outer length | Outer width
1200mm | 1200mm | 1300mm | 1300mm
Material and finish
Material | Color | RAL
GRP (Glass-fibre Reinforced Polyester) | Concrete grey | 7023
Resistances available
Characteristics / technical specifications
Cable junction box with interlocking crowns in GRP, steel G.A.C. frame, GRP lids. Usable area 1200×1200 mm; outer dimensions 1300×1300 mm. Standard height 600 mm (customizable). Available load classes: A15 (1.5 t), B125 (12.5 t), C250 (25.0 t).
Dimensions
Inner length | Inner width | Outer length | Outer width
1200mm | 1200mm | 1300mm | 1300mm
Material and finish
Material | Color | RAL
GRP (Glass-fibre Reinforced Polyester) | Concrete grey | 7023
Resistances available
- CT S3 A15 — Resistance: 1.5 tons
- CT S3 B125 — Resistance: 12.5 tons
- CT S3 C250 — Resistance: 25.0 tons
Characteristics / technical specifications
- Model: CT S3 (product family designation)
- Usable area: 1200 × 1200 mm
- Outer dimensions: 1300 × 1300 mm
- Standard height: 600 mm (customizable)
- Main material: GRP (Glass-fibre Reinforced Polyester)
- Frame: steel G.A.C. frame
- Lids: GRP lids
- Color: Concrete grey (RAL 7023)
- Available load classes: 1.5 t (A15), 12.5 t (B125), 25.0 t (C250)
