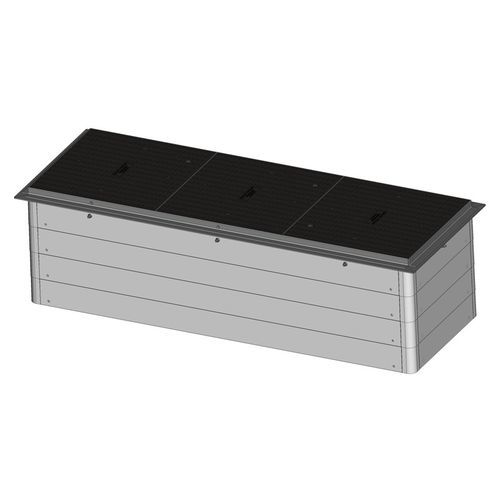

Underground junction box CT S6 series

GRPfor cables

Product
Cable junction box CT S6 (KVK S6) with interlocking crowns in GRP, steel G.A.C. frame and GRP lids. Usable area: 2000 × 600 mm. Standard height: 600 mm (customisable). Available load resistances: 1.5 t, 12.5 t, 25.0 t.

Dimensions
Inner length: 2000 mm
Inner width: 600 mm
Outer length: 2100 mm
Outer width: 700 mm

Material & Color
Material: GRP (Glass-fibre Reinforced Polyester)
Color: Concrete grey
RAL: 7023

Available resistances / product variants

• CT S6 A15 — Resistance: 1.5 tons — EAN: —
• CT S6 B125 — Resistance: 12.5 tons — EAN: —
• CT S6 C250 — Resistance: 25.0 tons — EAN: —

Characteristics / technical specifications

• Type: Cable junction box (CT S6 / KVK S6)
• Construction: Interlocking crowns in GRP
• Frame: G.A.C. steel frame
• Lids: GRP lids
• Usable area: 2000 × 600 mm
• Standard height: 600 mm (customisable)
• Inner dimensions: 2000 mm (length) × 600 mm (width)
• Outer dimensions: 2100 mm (length) × 700 mm (width)
• Material: GRP (Glass-fibre Reinforced Polyester)
• Color: Concrete grey (RAL 7023)
• Available load resistances: 1.5 t, 12.5 t, 25.0 t
• Product variants: CT S6 A15, CT S6 B125, CT S6 C250
