Underground junction box CT S5 series

steelGRPfor cables

Product overview

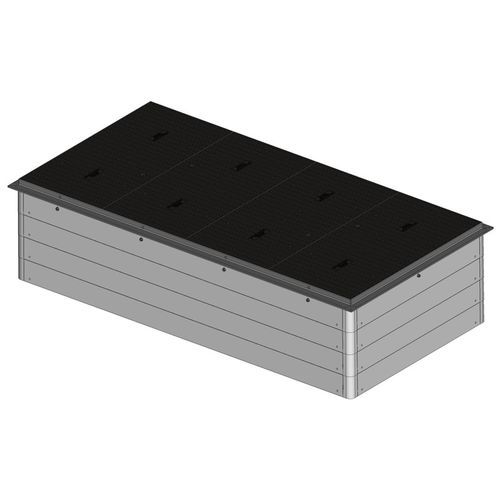

Cable junction box KVK S5 in GRP with steel support frame and GRP lids featuring interlocking crowns. Usable (inner) area 2500×1200 mm. Standard height 600 mm; other heights available on request. Load classes: A15 (1.5 t), B125 (12.5 t), C250 (25 t).

Dimensions
Inner length: 2500 mm
Inner width: 1200 mm
Outer length: 2600 mm
Outer width: 1300 mm

Material & Finish
Material: GRP (Glass-fibre Reinforced Polyester)
Frame: steel support frame (G.A.C.)
Lids: GRP lids with interlocking crowns
Color / Finish: Concrete grey, RAL 7023

Available variants & load classes

• KVK S5 A15 — Load class A15 — 1.5 t
• KVK S5 B125 — Load class B125 — 12.5 t
• KVK S5 C250 — Load class C250 — 25.0 t

Notes
Height: standard 600 mm; customizable heights and specific dimensional adaptations possible on request. Technical datasheets are available for each variant.

Technical specifications

• Type: Modular cable junction box with interlocking GRP crowns
• Usable area (inner): 2500 × 1200 mm
• Outer dimensions: 2600 × 1300 mm
• Standard height: 600 mm (customizable)
• Material: GRP (Glass-fibre Reinforced Polyester)
• Frame: Steel support frame (G.A.C.)
• Lids: GRP lids with interlocking crowns
• Color / Finish: Concrete grey (RAL 7023)
• Available mechanical resistances: 1.5 t (A15), 12.5 t (B125), 25.0 t (C250)
• Product variants: KVK S5 A15, KVK S5 B125, KVK S5 C250
• Documentation: Variant-specific technical datasheets (PDF) available
