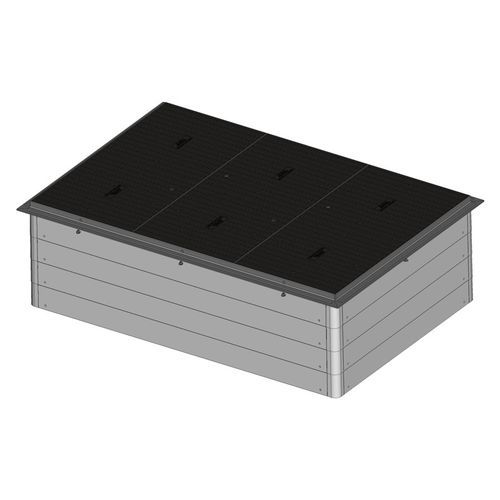

Underground junction box CT S4 series

steelGRPfor cables

Description
Cable junction box with interlocking crowns in GRP, fitted with a steel frame and GRP lids. Usable opening: 1900 x 1200 mm. Standard height: 600 mm or configurable on request. Available load resistances: 1.5, 12.5 and 25.0 tonnes.

Dimensions
Inner length: 1900 mm
Inner width: 1200 mm
Outer length: 2000 mm
Outer width: 1300 mm

Material and finish
Material: GRP (Glass-fibre Reinforced Polyester)
Color: Concrete grey
RAL: 7023

Available resistances / Product variants

• CT S4 A15 — 1.5 tonnes
• CT S4 B125 — 12.5 tonnes
• CT S4 C250 — 25.0 tonnes

Characteristics / technical specifications

• Model / series: KVK S4
• Usable opening (clear opening): 1900 x 1200 mm
• Height: 600 mm (standard) or configurable
• Outer dimensions: 2000 x 1300 mm
• Material: GRP (Glass-fibre Reinforced Polyester)
• Frame: Steel frame
• Lids: GRP lids with interlocking crowns
• Color / Finish: Concrete grey, RAL 7023
• Available load resistances: 1.5 t (A15), 12.5 t (B125), 25.0 t (C250)
