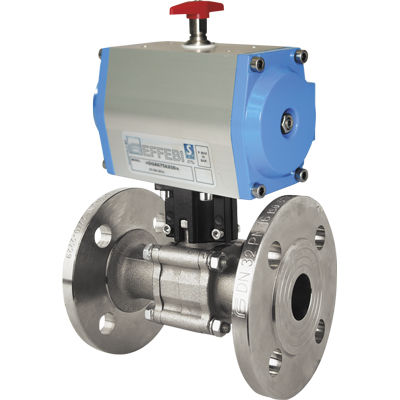

Ball valve OLYMPIC series

pneumatically-operatedmanualfor compressed air

ACTUATOR FEATURES: • ROTATION ANGLE: 90°. • TEMPERATURE LIMITS: -20°C / +90°C. • MAXIMUM SUPPLY PRESSURE: 10 bar (8 bar for DNA045). • NOMINAL PRESSURE: 5.62 bar. • SUPPLY FLUID: filtered compressed air. • LUBRICATION: NBR compatible oil to be used. For further information on the actuator technical features refer to the specific data sheet for actuator at the end of this catalogue (page 348/349). STANDARD VALVE FEATURES: • TEMPERATURE LIMITS: –15°C / + 120°C (PTFE). • MAXIMUM WORKING PRESSURE: PN16 for all dimensions. • ENDS: UNI EN 1092-3. current production: flanges UNI 2240 and 2229 (raised face PN16) face to face dimensions according to ISO5752 (table no. 6 medium series PN16). For general applications and special executions, refer to the manual valve.
