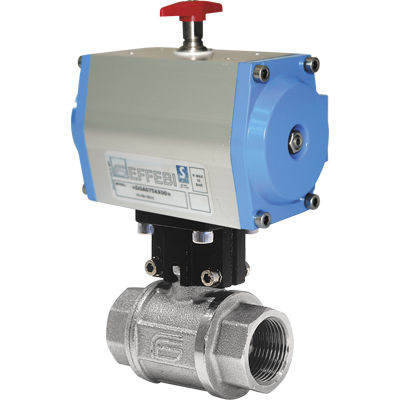

Ball valve TOTAL seriespneumatically-operatedmanualfor compressed air
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- pneumatically-operated, manual
- Media
- for compressed air
- Body
- threaded
- Other characteristics
- with actuator, single-acting, double-acting
- DN
Min.: 0.375 in
Max.: 3 in
- Pressure
Min.: 20 bar
(290.1 psi)Max.: 64 bar
(928.2 psi)- Temperature
Min.: -20 °C
(-4 °F)Max.: 130 °C
(266 °F)
Description
ACTUATOR FEATURES:
• ROTATION ANGLE: 90°.
• TEMPERATURE LIMITS: -20°C / +90°C.
• MAXIMUM SUPPLY PRESSURE: 10 bar (8 bar for DNA045).
• NOMINAL PRESSURE: 5.62 bar.
• SUPPLY FLUID: filtered compressed air.
• LUBRICATION: NBR compatible oil to be used.
For further information on the actuator technical features refer to the specific data sheet for actuator at the end of this catalogue (page 348/349).
STANDARD VALVE FEATURES:
• TEMPERATURE LIMITS:
for fluids –20°C + 130°C (PTFE)
for gas –20°C + 60°C (PTFE).
• CONNECTIONS: F/F Rp UNI ISO 7/1 (UNI EN 10226) – DIN DIN2999 parallel.
• MAXIMUM WORKING PRESSURE: from 64 bar to 20 bar for fluids.
For general applications and special executions, refer to the manual valve.
