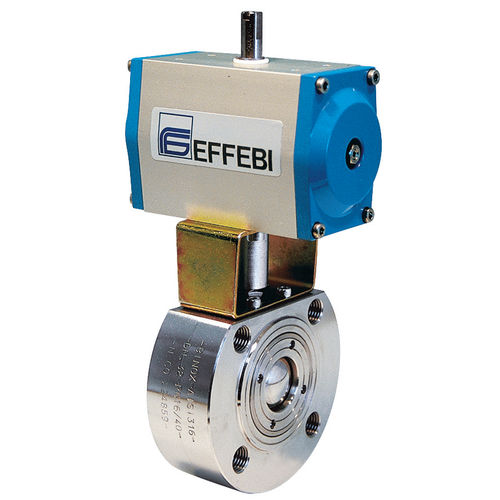

Ball valve MOON series
pneumatically-operatedfor compressed airstainless steel

ball valve
ball valve
ball valve
ball valve
ball valve
ball valve
ball valve
Add to favorites
Compare this product

Go to the EFFEBI website for more information

Characteristics

Type
ball
Operation
pneumatically-operated
Media
for compressed air
Body
stainless steel, carbon steel
Applications
flange
Other characteristics
with actuator, single-acting, double-acting
DN

Min.: 15 mm
(0.591 in)

Max.: 100 mm
(3.937 in)

Pressure

16 bar
(232.1 psi)

Temperature

Min.: -20 °C
(-4 °F)

Max.: 180 °C
(356 °F)

Description

ACTUATOR FEATURES: • ROTATION ANGLE: 90°. • TEMPERATURE LIMITS: -20°C / +90°C. • SUPPLY MAXIMUM PRESSURE: 10 bar (8 bar for DNA045). • NOMINAL PRESSURE: 5.62 bar. • SUPPLY FLUID: filtered compressed air. • LUBRICATION: NBR compatible oil to be used. For further information on the actuator technical features refer to the specific data sheet for actuator at the end of this catalogue (page 348/349). STANDARD VALVE FEATURES: • STANDARDS: BS EN ISO 17292 : 2004, fire safe to BS6755-API 6 FA-API607. • TEMPERATURE LIMITS: -20°C / +180°C. (PTFE). • MAXIMUM WORKING PRESSURE: PN16. • CONNECTIONS WITH FLANGES: UNI EN 1092 and DIN2501 BL.1. • FLANGE DRILLING: metric. • SPECIAL EXECUTIONS: ANSI150 - ANSI300 - PN40. For general applications and special executions, see the manual valve.
