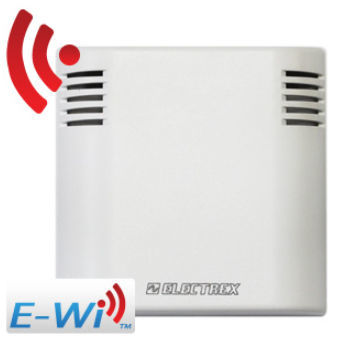

Relative humidity and temperature sensor PFATDHI-0BW DECA
wall-mountradio12VDC

Relative humidity and temperature sensor - PFATDHI-0BW DECA - ELECTREX - wall-mount / radio / 12VDC
Relative humidity and temperature sensor - PFATDHI-0BW DECA - ELECTREX - wall-mount / radio / 12VDC
Add to favorites
Compare this product
Go to the ELECTREX website for more information

Characteristics

Type
relative
Mounting
wall-mount
Output
radio
Supply voltage
12VDC
Electrical connection
built-in transmitter
Applications
for ambient air
Measuring range (%)

Min.: 0 %

Max.: 100 %

Precision

1.8 %

Measuring range (temperature)

Min.: -20 °C
(-4 °F)

Max.: 80 °C
(176 °F)

Accuracy (temperature)

0.2 °C
(32.36 °F)

Description

Product description
Sensor for measuring ambient temperature and humidity. It transmits data via radio waves at 868 MHz to the Deca Coordinator RS485 E-WI 868. Typical temperature accuracy ±0.2 °C, humidity ±1.8% RH. Sampling frequency configurable from 1 to 60 minutes. Designed for wall installation. Dimensions: 80 × 80 × 25 mm. Powered by 12 Vdc or by battery (not included); battery life up to 7 years at 15-minute sampling with adequate radio coverage.

Documentation
Datasheet: Datasheet Deca Sensor and Deca Sensor E-Wi (pdf).

Technical specifications
  • Measured parameters: ambient temperature and humidity
  • Radio transmission frequency: 868 MHz (to Deca Coordinator RS485 E-WI 868)
  • Typical temperature accuracy: ±0.2 °C
  • Typical humidity accuracy: ±1.8% RH
  • Sampling frequency: configurable from 1 to 60 minutes
  • Mounting: wall installation
  • Dimensions: 80 × 80 × 25 mm
  • Power supply: 12 Vdc or battery (not included)
  • Battery life: up to 7 years at 15-minute sampling with sufficient radio coverage
