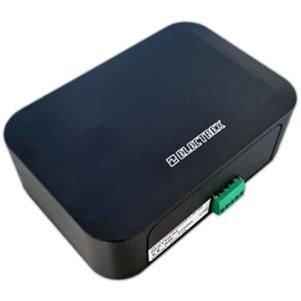

Digital I/O module PFAPM0C-NN4G PICO PRO SIO

ModbusRS-485Modbus RTU

Overview
Intelligent Input/Output & Sensor device equipped with eight opto-isolated digital inputs with separate commons and an SIO Bus. Digital inputs include a programmable debounce filter suitable for pulse counting or remote status indication. The SIO Bus supports integration of additional I/O modules and environmental sensors via Milli Pro devices. Up to eight configurable alarms can drive digital outputs and/or set status signals on Modbus registers.

Features

• Eight digital inputs with separate commons
• Opto-isolated digital inputs
• Programmable debounce filter (suitable for pulse counting or remote status indication)
• SIO Bus for integration of additional I/O modules and environmental sensors (via Milli Pro devices)
• Up to eight configurable alarms for driving digital outputs and/or generating Modbus register status signals

Other information
Communication protocol: Modbus-RTU RS485. Firmware remotely upgradeable. Power supply: 12 VDC. Grey enclosure.

Characteristics / technical specifications

• Product code: PFAPM0C-NN4G
• Type: Intelligent Input/Output & Sensors device
• Communication protocol: Modbus-RTU RS485
• Firmware: remotely upgradeable
• Power supply: 12 VDC
• Inputs: 8 digital inputs with separate commons
• Input isolation: opto-isolated
• Input filter: programmable debounce filter (suitable for pulse counting)
• SIO Bus: supports additional I/O modules and environmental sensors (via Milli Pro devices)
• Alarms: up to 8 configurable alarms (can drive digital outputs and/or set status on Modbus registers)
• Enclosure colour: Grey
• Dimensions: 125 × 40 × 85 mm
