Analog I/O module PFAP401-QA2C PICO PRO D4
digitalRS-485Modbus

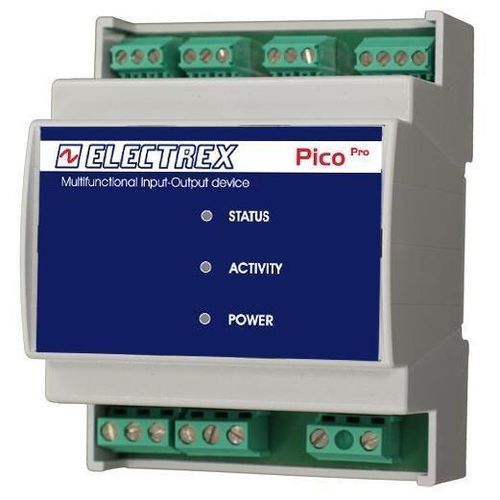

Analog I/O module - PFAP401-QA2C PICO PRO D4 - ELECTREX - digital / RS-485 / Modbus
Analog I/O module - PFAP401-QA2C PICO PRO D4 - ELECTREX - digital / RS-485 / Modbus
Add to favorites
Compare this product
Go to the ELECTREX website for more information

Characteristics

Signal type
analog, digital
Interface
RS-485, Modbus
Number of inputs/outputs
2 digital inputs, 2 analog outputs
Type
remote
Mounting
DIN rail
Other characteristics
programmable, compact, configurable

Description

Code: PFAP401-QA2C

Product type: Intelligent Input / Output & Sensors Device

Overview:
  • 2 digital inputs, 2 digital outputs, and 2 analog outputs, each with separate common terminals.
  • Opto-isolated digital inputs with debounce filtering for pulse counting or remote status monitoring.
  • Opto-isolated transistor digital outputs (rated 27 Vdc, 27 mA in accordance with DIN 43864) configurable as outputs for internal alarms or as remotely controlled output channels.
  • Galvanically isolated analog outputs supporting 4–20 mA or 0–20 mA signals, providing high accuracy and long-term stability.
  • Includes 8 configurable alarms which can drive digital outputs and/or generate status values in Modbus registers.
  • Modbus RTU communication over RS485 and remote firmware upgrade capability.
  • LED indicators: one power LED, one status LED, one RS485 communication LED.
  • DIN rail enclosure: 4 modules.
  • Power supply: 230–240 Vac.


Features:
  • Opto-isolated digital inputs with debounce filtering.
  • Pulse counting and remote status monitoring functionality.
  • Opto-isolated transistor digital outputs (27 Vdc, 27 mA, DIN 43864).
  • Galvanically isolated analog outputs (4–20 mA or 0–20 mA).
  • 8 configurable alarms mapped to outputs or Modbus registers.
  • Modbus RTU over RS485.
  • Remote firmware upgrade.
  • Power, status and RS485 LEDs for local diagnostics.
  • Compact DIN-rail 4-module enclosure.


Technical specifications:
  • Code: PFAP401-QA2C
  • Commercial name: PICO PRO D4
  • Digital inputs: 2 (opto-isolated, debounce filtering)
  • Digital outputs: 2 (opto-isolated transistor outputs, 27 Vdc, 27 mA, DIN 43864)
  • Analog outputs: 2 (galvanically isolated, configurable 4–20 mA or 0–20 mA)
  • Common terminals: Separate commons for each channel group (4 commons)
  • Alarms: 8 configurable alarms (can drive digital outputs and/or Modbus registers)
  • Communication: Modbus RTU over RS485
  • Firmware: Remote firmware upgrade capability
  • LEDs: Power LED, Status LED, RS485 communication LED
  • Enclosure: DIN rail, 4 modules
  • Power supply: 230–240 Vac
  • Typical applications: pulse counting, remote status monitoring, driving outputs/alerts via Modbus
