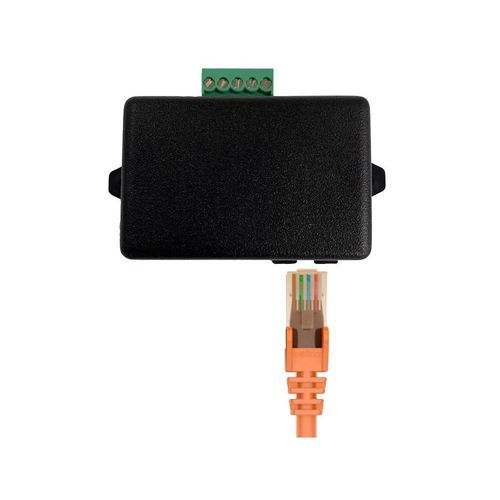

Fieldbus node PFAPR01-Z04B PICO PRO

Overview
RS485 node with SIO Bus for connecting digital and/or analog inputs/outputs and environmental sensors via Milli Pro I/O and Milli Sensor devices. Model: PFAPR01-Z04B. Designed for compact integration in industrial or building automation systems.

Key features

• SIO Bus for Sensor Bus environmental sensors and Milli Pro I/O / Milli Sensor devices
• RS485 port with removable terminal blocks for straightforward wiring
• SIO Bus port with RJ45 connector
• Internal terminal blocks provided for RS485 network wiring
• Supports Modbus RTU communication over RS485
• Power supply: 12 Vdc (can be provided by PFTP100-P2 switching power supply or via RS485 cable when connected to a Libra system)
• Black enclosure
• Compact dimensions: 38 × 73 × 20 mm

Documentation
Data sheet: Data sheet PICO PRO RS485 (pdf) is available for this product.

Technical specifications

• Code: PFAPR01-Z04B
• Designation: PICO PRO NODE
• Buses / Protocols: SIO Bus; RS485 with Modbus RTU
• Connectors: RS485 removable terminal blocks; SIO Bus RJ45 connector; internal terminal blocks for RS485 wiring
• Power supply: 12 Vdc (from PFTP100-P2 or via RS485 cable with Libra system)
• Compatibility: Milli Pro I/O and Milli Sensor devices
• Enclosure: Black, 38 × 73 × 20 mm
