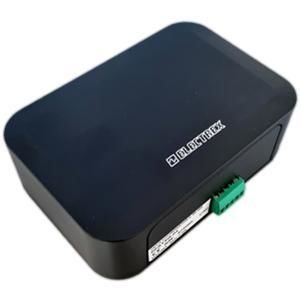

Analog I/O module PFAPM0C-QR4G PICO PRO SIO

digitalModbusModbus RTU

Product overview
Intelligent I/O and sensor module with 2 opto-isolated digital inputs (with debounce), 2 opto-isolated transistor digital outputs, 4 configurable analog inputs and an SIO Bus for expansion. Digital inputs support pulse counting and remote state monitoring. Digital outputs are rated 27 VDC / 27 mA (DIN 43864) and can be used as alarm outputs or remotely controlled outputs. Analog inputs accept -10 to 10 V (compatible with 0-10 V, 0-5 V, -5 to 5 V) and 4-20 mA with a 200 Ω shunt. The SIO Bus enables integration of additional I/O and environmental sensors via Milli Pro devices. Up to eight alarms can trigger outputs or set status on Modbus registers. Communication: Modbus-RTU over RS485. Firmware remotely upgradeable. Power supply: 12 VDC. Enclosure: gray, 125 x 40 x 85 mm.

Datasheet
Data sheet PICO PRO RS485 (PDF available).

Technical specifications

• Product code: PFAPM0C-QR4G
• Type: PICO PRO SIO RS485 I/O & sensor module
• Digital inputs: 2, opto-isolated, with debounce filter; suitable for pulse counting or remote status indication
• Digital outputs: 2, opto-isolated transistor, 27 VDC / 27 mA (DIN 43864); programmable as alarm outputs or remote-controlled outputs
• Analog inputs: 4, configurable for -10 to 10 V; compatible with 0-10 V, 0-5 V, -5 to 5 V; 4-20 mA support via 200 Ω resistor
• SIO Bus: expansion for additional I/O and environmental sensors via Milli Pro devices
• Alarms: up to 8 configurable alarms to drive digital outputs and/or generate status on Modbus registers
• Communication: Modbus-RTU over RS485
• Firmware: remotely upgradeable
• Power supply: 12 VDC
• Enclosure dimensions: 125 x 40 x 85 mm; color: gray
