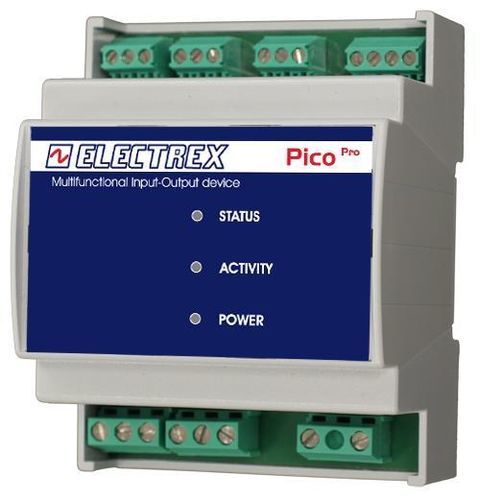

Digital I/O module PFAP401-NC2C PICO PRO D4

ModbusRS-485Modbus RTU

Product description
Intelligent Input/Output module PFAP401-NC2C PICO PRO D4 with four opto-isolated digital inputs and four opto-isolated transistor digital outputs, each with separate commons. Inputs include a programmable debounce filter and are suitable for pulse counting and remote status signalling. Outputs are rated 27 VDC / 27 mA (DIN 43864) and can be used for local alarms or controlled remotely via Modbus. Up to eight configurable alarms can drive outputs and/or set status registers on Modbus.

Operation and communication
LED indicators: power, status and RS485 communication. Communication protocol: Modbus-RTU over RS485. Firmware remotely upgradeable. DIN-rail mounting, 4-module width. Power supply: 230–240 VAC.

Typical applications

• Pulse counting from flowmeters, sensors or external contacts
• Remote status monitoring of field devices
• Local alarm signalling and actuator control via digital outputs
• Integration into supervisory systems via Modbus-RTU

Technical specifications

• Product code: PFAP401-NC2C
• Model: PICO PRO D4
• Digital inputs: 4 opto-isolated, programmable debounce filter
• Digital outputs: 4 opto-isolated transistor outputs, 27 VDC / 27 mA (DIN 43864)
• Separate commons for inputs and outputs
• Configurable alarms: up to 8
• LED indicators: power, status, RS485 communication
• Communication: Modbus-RTU over RS485
• Firmware: remotely upgradeable
• Mounting: DIN rail, 4-module width
• Supply voltage: 230–240 VAC
