Analog I/O module PFAP401-RQ2C PICO PRO D4
digitalModbusRS-485

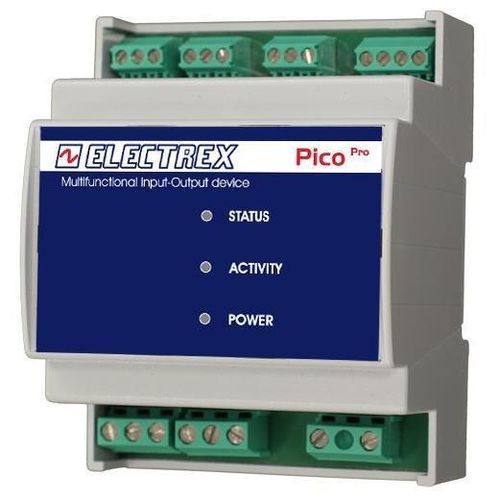

Analog I/O module - PFAP401-RQ2C PICO PRO D4 - ELECTREX - digital / Modbus / RS-485
Analog I/O module - PFAP401-RQ2C PICO PRO D4 - ELECTREX - digital / Modbus / RS-485
Add to favorites
Compare this product
Go to the ELECTREX website for more information

Characteristics

Signal type
analog, digital
Interface
Modbus, RS-485, Modbus RTU
Number of inputs/outputs
2 digital inputs, 4 analog inputs, 2-O
Type
remote
Mounting
DIN rail-mounted
Other characteristics
configurable

Description

Product Overview
PICO PRO D4 PFAP401-RQ2C is an intelligent input/output and sensor module designed for industrial monitoring and control. It provides 4 configurable analog inputs, 2 opto-isolated digital inputs and 2 opto-isolated transistor digital outputs with separate commons. Analog inputs accept -10 to 10 V (compatible with 0–10 V, 0–5 V, -5–5 V) and support 4–20 mA via a 200 Ω shunt. Digital inputs include debounce filtering for pulse counting or status signalling. Communication is Modbus‑RTU over RS485; firmware can be upgraded remotely. The device is DIN-rail mountable, 4-module width, and powered by 230–240 VAC. LED indicators show power, status and RS485 activity.

Features
  • 4 analog inputs configurable for voltage or current sensors
  • 2 opto-isolated digital inputs with debounce filter (pulse counting, status)
  • 2 opto-isolated transistor digital outputs (27 VDC / 27 mA) with separate commons
  • Up to 8 configurable alarms mapped to outputs and/or Modbus registers
  • LED indicators: power, status, RS485 communication
  • Modbus‑RTU over RS485; remote firmware upgrade
  • DIN-rail mounting, 4-module width


Technical specifications
  • Model: PFAP401-RQ2C
  • Commercial name: PICO PRO D4
  • Function: Intelligent input/output & sensor module
  • Analog inputs: 4 channels; range -10 to 10 V (compatible 0–10 V, 0–5 V, -5–5 V); 4–20 mA with 200 Ω resistor
  • Digital inputs: 2 opto-isolated channels with debounce filter
  • Digital outputs: 2 opto-isolated transistor outputs; 27 VDC / 27 mA (DIN 43864)
  • Alarms: up to 8 configurable alarms for driving outputs or setting Modbus register states
  • Communication: Modbus‑RTU over RS485
  • Power supply: 230–240 VAC
  • Mounting: DIN-rail; width: 4 modules
  • LEDs: power, status, RS485
  • Firmware: remotely upgradeable


Applications
  • Industrial process monitoring and control
  • Building automation and energy management
  • Remote status acquisition and alarm signalling
  • OEM control panels and machine interfaces


Ordering information
  • Code: PFAP401-RQ2C
  • Designation: PICO PRO D4 — Intelligent I/O & sensor module, 4AI/2DI/2DO
  • Mounting: DIN-rail, 4-module width
