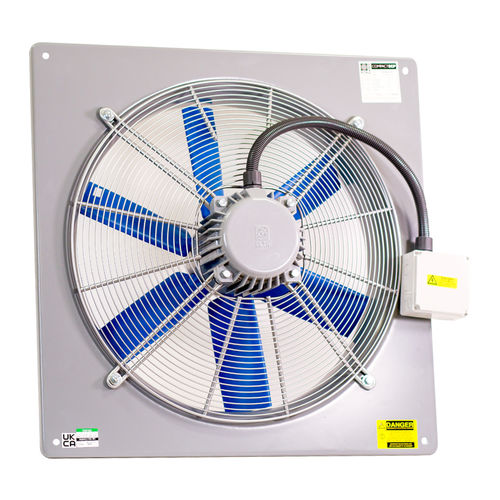

Axial fan SCP350/4-3AC
for air circulation400VAC380VAC

Axial fan - SCP350/4-3AC - ELTA FANS - for air circulation / 400VAC / 380VAC
Axial fan - SCP350/4-3AC - ELTA FANS - for air circulation / 400VAC / 380VAC
Axial fan - SCP350/4-3AC - ELTA FANS - for air circulation / 400VAC / 380VAC - image - 2
Axial fan - SCP350/4-3AC - ELTA FANS - for air circulation / 400VAC / 380VAC - image - 3
Add to favorites
Compare this product

Characteristics

Configuration
axial
Function
for air circulation
Supply voltage
400VAC, 380VAC
Drive mechanism
electrically-powered
Applications
industrial, commercial
Other characteristics
compact
Air flow

0.243 m³/s, 0.407 m³/s, 0.515 m³/s, 0.57 m³/s, 0.616 m³/s
(8.581 ft³/s, 14.373 ft³/s, 18.187 ft³/s, 20.129 ft³/s, 21.754 ft³/s)

Diameter

350 mm
(13.78 in)

Rotational speed

1,440 rpm
(9,048 rad.min-1)

Noise level

81 dB, 82 dB

Description

Plate Mounted Axial Flow Fan • Standard size 350mm • Air volume flow rates up to 0.616 m3/s • Static pressures up to 135 Pa • Highly efficient, lightweight induction motors • Fully speed controllable • Suitable for operating temperatures up to +70℃ (speed control +50℃) • Available in AC
