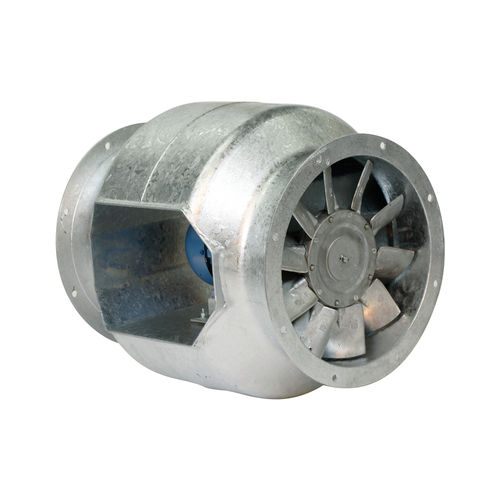

Axial fan SB250-CON4-3cooling220VAC240 VAC
Add to favorites
Compare this product
Characteristics
- Configuration
- axial
- Function
- cooling
- Supply voltage
- 230VAC, 220VAC, 240 VAC
- Drive mechanism
- electrically-powered
- Material
- steel
- Other characteristics
- anti-corrosion, conical
- Air flow
0.04 m³/s, 0.14 m³/s, 0.211 m³/s, 0.27 m³/s
(1.413 ft³/s, 4.944 ft³/s, 7.451 ft³/s, 9.535 ft³/s)- Diameter
250 mm
(9.843 in)- Rotational speed
1,370 rpm
(8,608 rad.min-1)- Noise level
80 dB
Description
Bifurcated Conical Axial Flow Fan
• Standard size 250mm
• Air volume flow rates up to 0.27 m3/s
• Static pressures up to 75 Pa
• Suitable for operating temperatures up to +200℃
• Available in AC
A range of bifurcated axial fans, specially developed with motor out of the airstream to handle more hostile air movement applications.
High Temperature
Class H motors out of the airstream are not effected by contaminates in the ventilated air. Suitable for elevated temperatures of up to 200℃.
Efficient Performance
High Efficiency Adjustable pitch aerofoil impellers are provided with blades made from high quality pressure die cast aluminium.
Corrosion resistance
The fan casing is hot dip galvanised after fabrication to BS 729, offering enhanced corrosion resistance.
Weather Resistance
The fans are suitable for external mounting as standard.
Long Life
Motor is isolated from hot and contaminated air, prolonging the life of the fan.
