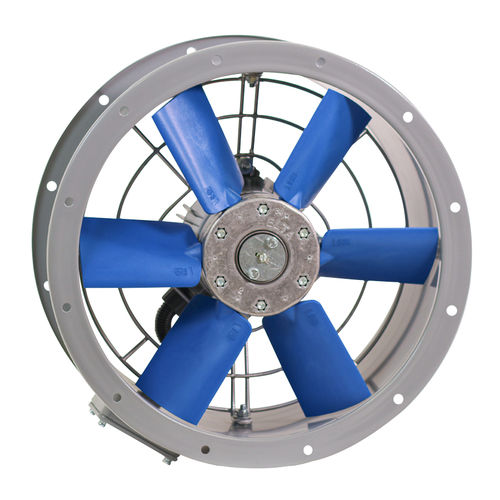

Axial fan SCD560/4-3AC

cooling230VAC400 VAC

Case Mounted Axial Flow Fan • Standard size 560mm • Air volume flow rates up to 2.887 m3/s • Static pressures up to 179 Pa • Suitable for operating temperatures up to +70℃ (speed control +50℃) • Available in AC Featuring our high efficiency Series 1 impeller, the Compact SCD makes light work of handling large volumes of air against low resistance. The fan design, construction and finish provide a strong, durable and weatherproofed range. Easy Installation Fans are supplied with a fitted IP55 terminal box, which allows the fan to be positioned conveniently to incoming electrical inputs. Efficient Performance Impellers are adjustable pitch aerofoil with blades made from high quality GRP. Combined with increased blade chord and twist, we have achieved 7% higher efficiency, reducing overall energy consumption. Increased blade root reduces stress levels making our range of impellers ideal for arduous fan applications. Corrosion Resistance Specially treated against corrosion, powder coated with polyester epoxy paint. Controllability A range of transformer voltage controllers are available which provide five speed step control of single phase or three phase motors.
