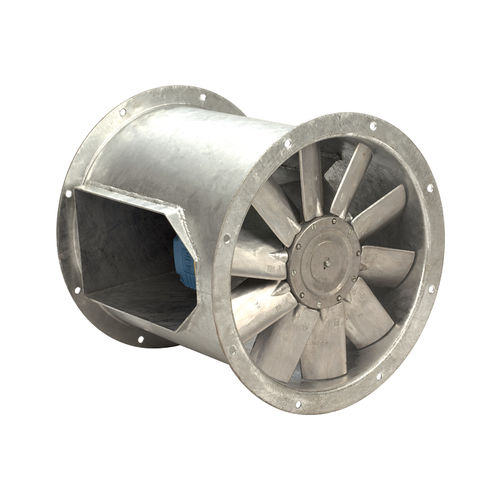

Axial fan SB400-CYL4-3cooling380VAC400 VAC
Add to favorites
Compare this product
Characteristics
- Configuration
- axial
- Function
- cooling
- Supply voltage
- 400 VAC, 380VAC
- Drive mechanism
- electrically-powered
- Material
- steel
- Other characteristics
- anti-corrosion
- Air flow
0.699 m³/s, 0.821 m³/s, 0.9 m³/s, 0.961 m³/s, 1.01 m³/s
(24.685 ft³/s, 28.993 ft³/s, 31.783 ft³/s, 33.937 ft³/s, 35.668 ft³/s)- Diameter
400 mm
(15.748 in)- Rotational speed
1,400 rpm
(8,796 rad.min-1)- Noise level
84 dB
Description
Bifurcated Cylindrical Axial Flow Fan
• Standard size 400mm
• Air volume flow rates up to 1.01 m3/s
• Static pressures up to 100 Pa
• Suitable for operating temperatures up to +200℃
• Available in AC
A range of bifurcated axial fans, specially developed with motor out of the airstream to handle more hostile air movement applications.
High Temperature
Class H motors out of the airstream are not effected by contaminates in the ventilated air. Suitable for elevated
temperatures up to 200℃.
Efficient Performance
High efficiency adjustable pitch aerofoil impellers are provided with blades made from high quality pressure die cast aluminium.
Corrosion Resistance
The fan casing is hot dip galvanised after fabrication to BS 729 offering enhanced corrosion resistance.
Weather Resistance
The fans are suitable for external mounting as standard.
Long life
Motor is isolated from hot and contaminated air, prolonging the life of the fan.
