Axial fan SB250-CON2-3cooling380VAC400 VAC
Add to favorites
Compare this product
Characteristics
- Configuration
- axial
- Function
- cooling
- Supply voltage
- 400 VAC, 380VAC
- Drive mechanism
- electrically-powered
- Material
- steel
- Other characteristics
- anti-corrosion, industrial, commercial, conical
- Air flow
Max.: 0.566 m³/s
(19.988 ft³/s)Min.: 0.198 m³/s
(6.992 ft³/s)- Diameter
250 mm
(9.843 in)- Rotational speed
2,780 rpm
(17,467 rad.min-1)- Noise level
88 dB
Description

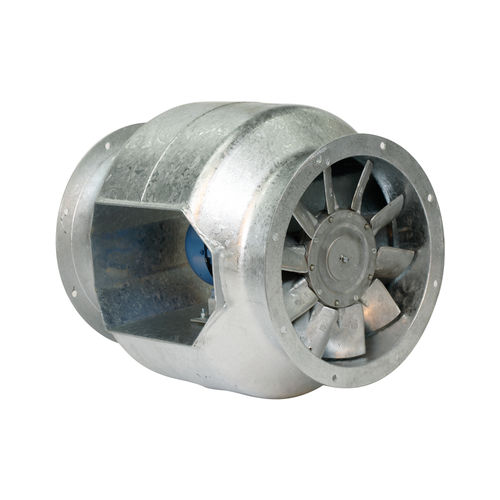

Bifurcated Conical Axial Flow Fan
• Standard size 250mm
• Air volume flow rates up to 0.566 m3/s
• Static pressures up to 252 Pa
• Suitable for operating temperatures up to +200℃
• Available in AC
A range of bifurcated axial fans, specially developed with motor out of the airstream to handle more hostile air movement applications.
High Temperature
Class H motors out of the airstream are not effected by contaminates in the ventilated air. Suitable for elevated temperatures of up to 200℃.
Efficient Performance
High Efficiency Adjustable pitch aerofoil impellers are provided with blades made from high quality pressure die cast aluminium.
Corrosion resistance
The fan casing is hot dip galvanised after fabrication to BS 729, offering enhanced corrosion resistance.
Weather Resistance
The fans are suitable for external mounting as standard.
Long Life
Motor is isolated from hot and contaminated air, prolonging the life of the fan.
